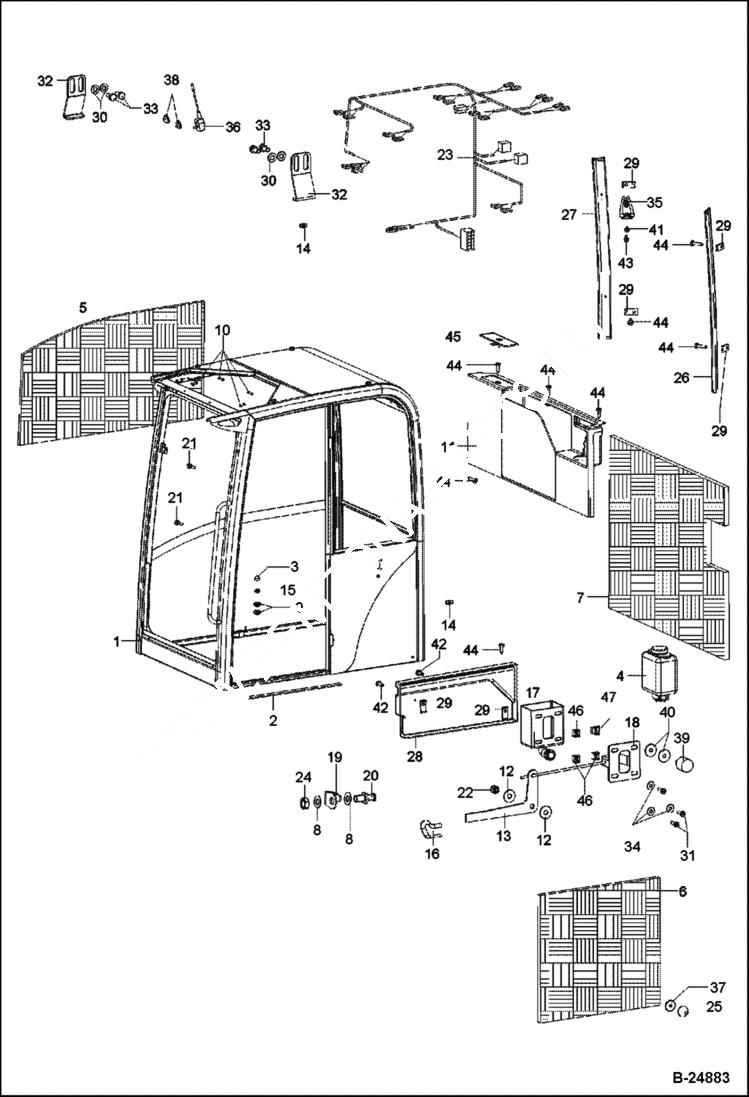

Запчасти Bobcat 442 OPERATORS CAB Cab - 202.042.466 & Above MAIN FRAME

1

OPERATORS CAB

2

5388665324

SAFETY-WALK Was 5388665159 - A

3

5388662051

CAP

4

5388662574

RESERVOIR

5

5388665150

INSULATION

6

5388665151

INSULATION

7

5388665152

INSULATION

8

1290707022

WASHER

9

1290707014

WASHER

10

5388665047

NUT

12

1307707018

WASHER

13

5388662939

HANDLE

14

1607003006

GREASE NIPPLE

15

5388665048

NUT

16

5388662587

BUTTON,PLASTIC

17

5388662222

HOUSING

18

5388662143

DOOR LOCKING includes cable

19

5388661433

GUIDE

20

5388661473

COTTER

21

5388665062

NUT

22

1212251011

NUT

23

5388665199

WIRE HARNESS

24

5388662090

NUT

25

5388661476

RUBBER BLOCK

26

5388665154

COVER

27

5388665155

COVER

28

5388665156

COVER

29

5388662515

CLIP

30

1290707018

WASHER

31

5388662776

BOLT

32

5388662944

HOLDER

33

5388662829

BOLT

34

1307707012

WASHER

35

5354244600

HOOK

36

5388664003

AERIAL

37

5388661442

WASHER

38

5388662057

PLUG

39

5388662947

STOP

40

5388662071

WASHER

41

5388662945

BOLT

42

5388662046

BOLT

43

5388662796

BOLT

44

5388661435

BOLT

45

5388665157

COVER

46

5388662284

NUT

47

5388662599

NUT
