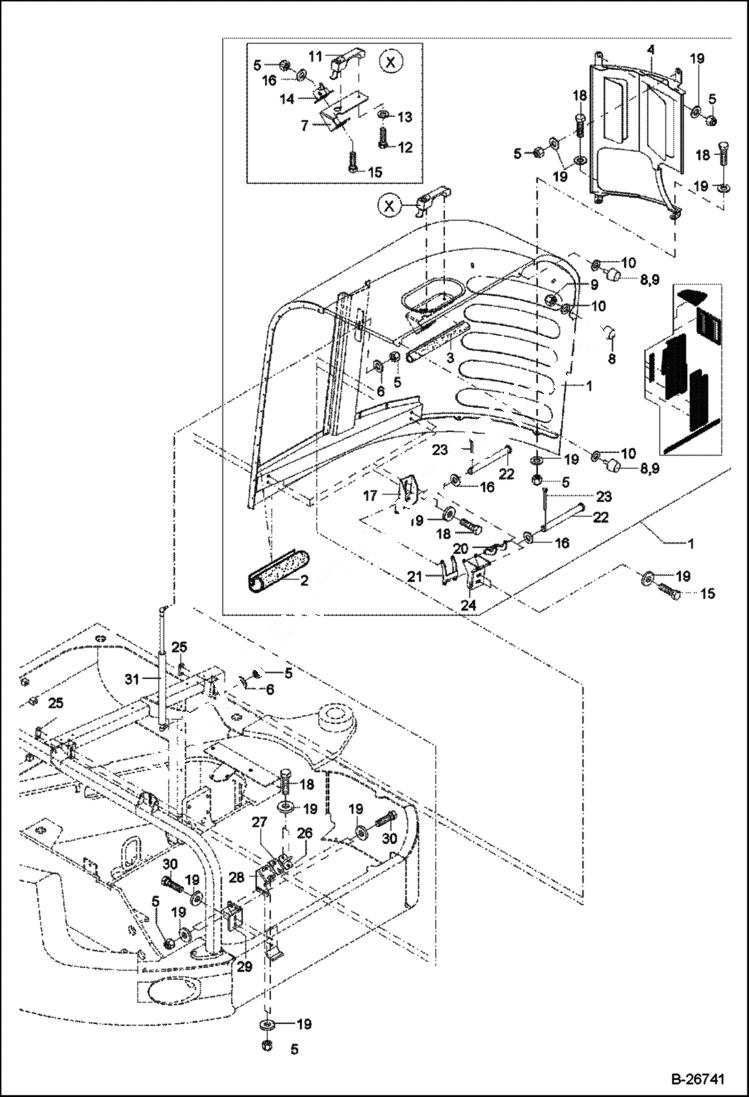

Запчасти Bobcat 442 ENGINE HOOD MAIN FRAME

1

5529020114

ENGINE HOOK hood is painted Bobcat white - W/Ref. 4, 11, 20 & 21 - Was 5529020082 - A

2

7025098

SEAL, BULK/MTR - A

3

7024438

SEAL - A

4

6190028083

GRID

5

1212251011

NUT

6

1290707018

WASHER

7

6190028137

BRACKET

8

5101290955

STOP

9

1212251009

NUT

10

1307707014

WASHER

11

5354604442

PLASTIC HANDLE

12

1008707712

BOLT

13

1290707014

WASHER

14

5354604335

HOOD LATCH

15

1008707018

BOLT

16

1290707018

WASHER

17

6190028023

HINGE

18

1008707318

BOLT

19

1343707057

WASHER

20

6190028024

HINGE right

21

6190028025

HINGE left

22

1360707139

PIN

23

1395707017

COTTER PIN

24

6190028022

HINGE

25

0190028163

MOUNT threaded plate

26

5354604338

COTTER

27

6176028067

FLAP

28

6183528011

ANGLE PLATE

29

6234028030

BRACKET

30

1008707618

BOLT

31

5696636604

GAS PRESSURE SPRING Was 5696636295 - A
