Запчасти Bobcat 442 HYDRAULIC OIL TANK MAIN FRAME

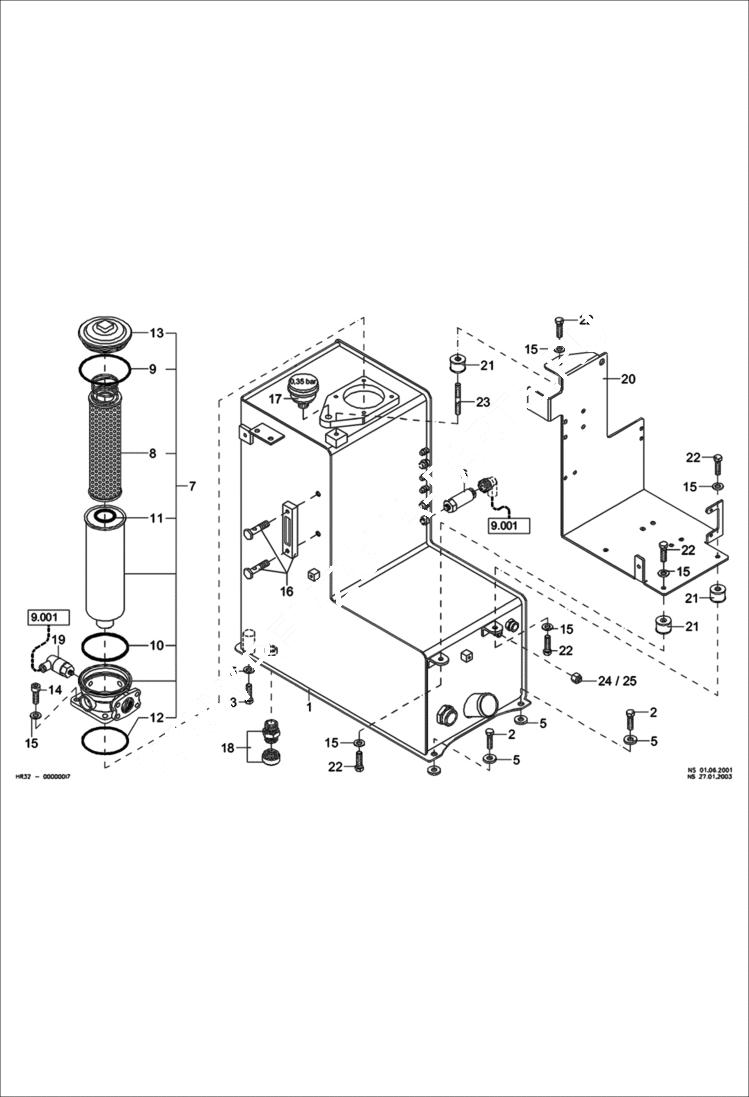

Схема запчастей Bobcat 442 - HYDRAULIC OIL TANK MAIN FRAME

Артикул

Название

Примечание

Количество

1

6190013002

HYD OIL TANK

2

1008707230

BOLT

3

1008707630

BOLT Was 1008707830 - A

5

1343707061

WASHER

6

5091661776

OIL LEVEL SENSOR

7

5380660829

RETURN FILTER Includes Refs. 8-13

8

5380658088

FILTER, OIL HYD TANK

9

1970956938

O-RING

10

3591410550

O-RING

11

1970956779

O-RING

12

1970956736

O-RING

13

5380660846

COVER filter

14

1045707923

BOLT

15

1290707020

WASHER

16

5368632243

OIL GAUGE

17

5501655650

BREATHER CAP

18

5366654593

DRAIN PLUG

19

5380660832

SWITCH, PRESS Was 5380660831 Was 5380660831 - A

20

6190008012

VALVE PLATE

21

BEARING NLA - Was 5101290966 - A

22

1008707423

BOLT

23

1133907324

STUD

24

1912060355

PLUG

25

1911060155

UNION NUT

Выбрано товаров: 24
