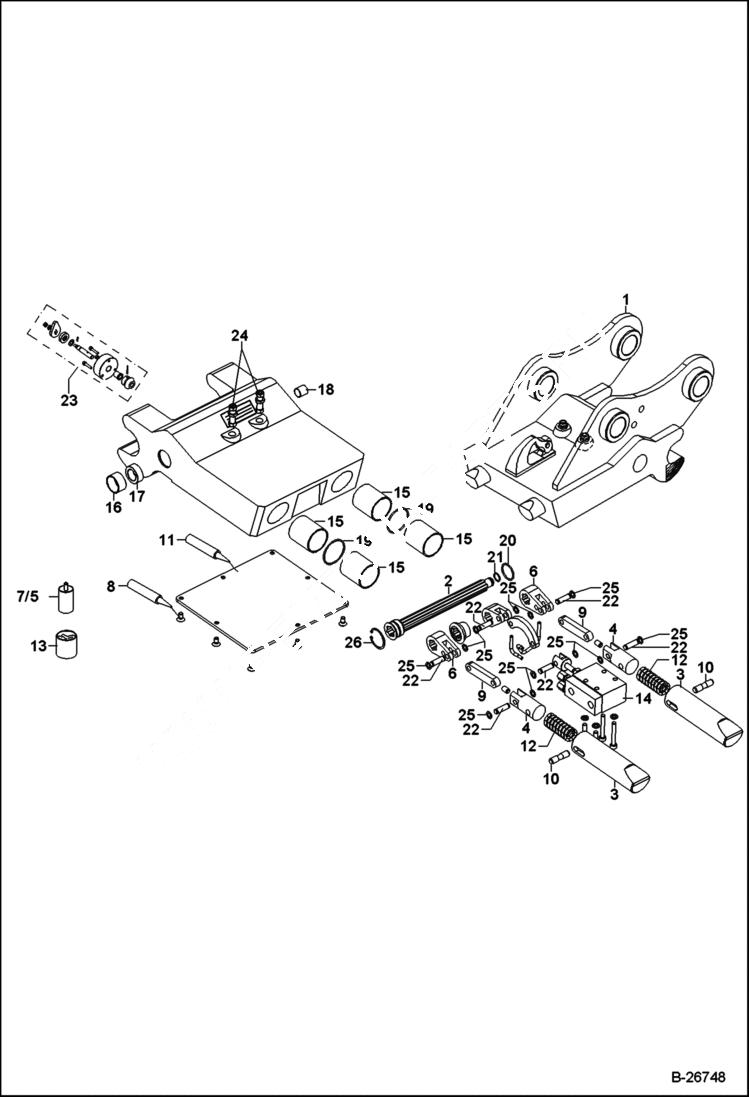

Запчасти Bobcat 442 QUICK MOUNT HITCH Hydraulic HM08 ACCESSORIES & OPTIONS

1

QUICK MOUNT HITCH

2

5455660482

SHAFT

3

5455660483

PIN

4

5455660484

PIN

5

MCS005002A

CLEANER, MOUNT QUICK

6

5455660489

CATCH

7

MCS005003A

SPRAY

8

MCS001035A

GLUE

9

5455660488

REVERSING LEVER

10

5455660486

PIN

11

MCS001041A

SEAL JOINT

12

5455660491

SPRING

13

4315005053

GREASE, TUBE

14

5455660766

HYDRAULIC CYLINDER

15

5455660493

BUSHING

16

5455660494

BUSHING

17

5455660495

BUSHING

18

5455660496

BUSHING

19

5455660497

O-RING

20

5455660498

O-RING

21

5455660499

O-RING

22

5455660500

PIN

23

5455660768

MECHANICAL INDICATOR

24

5455660767

FITTING

25

5455660505

CIRCLIP

26

5455660504

CIRCLIP
