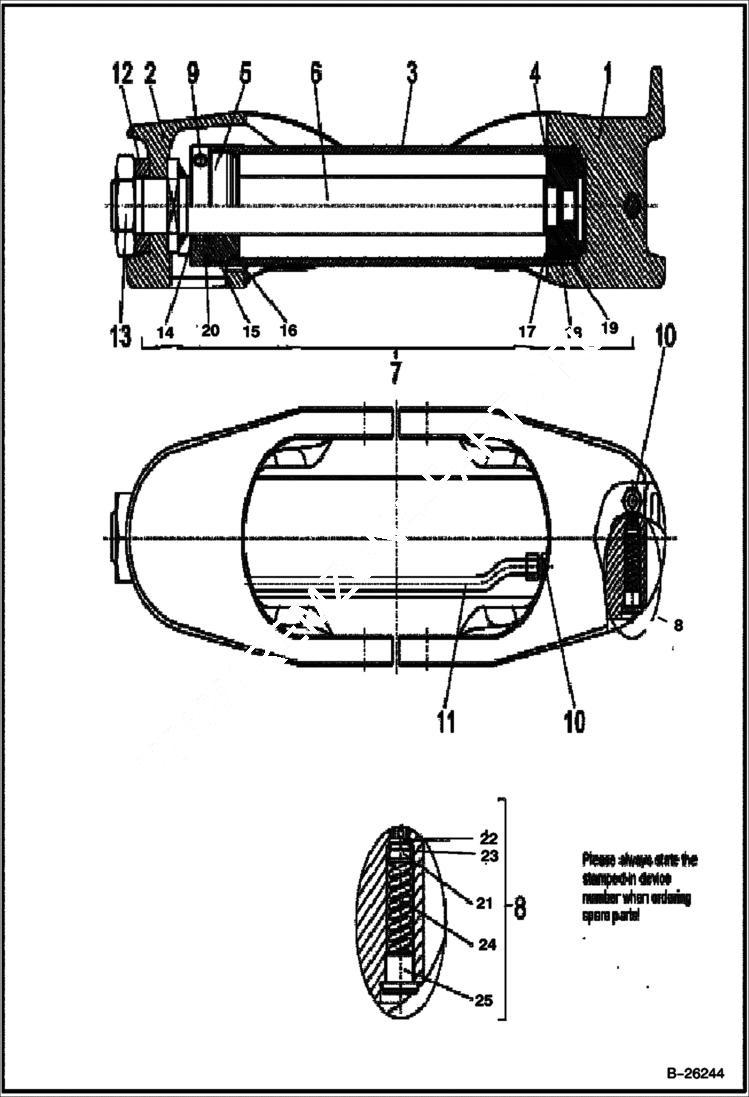

Запчасти Bobcat 442 HYDRAULIC RAM ACCESSORIES & OPTIONS

1

5440000244

BASE END

2

5440000246

ROD END

3

5440000247

CASE

4

5440000248

PISTON

5

5440000249

HEAD

6

5440000250

ROD

7

5440000251

SEAL KIT W/Ref. 14-20

8

5440000256

VALVE KIT W/Ref. 21-25

9

5440000086

ELBOW

10

5440000087

SCREW FITTING

11

5440000257

TUBELINE

12

5440000051

WASHER

13

5440000052

NUT

14

WIPER RING NSS - Order Ref. 7

15

PISTON ROD SEAL NSS - Order Ref. 7

16

O-RING NSS - Order Ref. 7

17

O-RING NSS - Order Ref. 7

18

SEAL NSS - Order Ref. 7

19

O-RING NSS - Order Ref. 7

20

PIN NSS - Order Ref. 7

21

BOLT NSS - Order Ref. 8

22

SPRING NSS - Order Ref. 8

23

PIN NSS - Order Ref. 8

24

PRESSURE SPRING NSS - Order Ref. 8

25

FITTING NSS - Order Ref. 8
