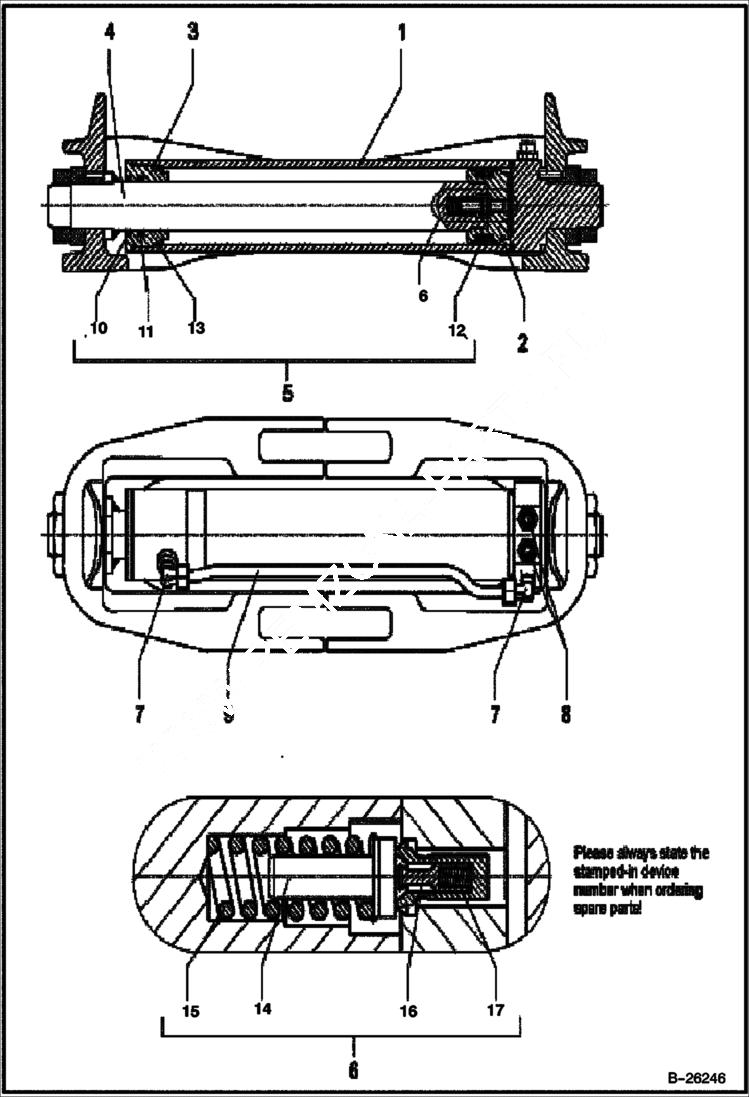

Запчасти Bobcat 442 HYDRAULIC RAM ACCESSORIES & OPTIONS

1

5440000073

CASE

2

5440000074

SEAT

3

5440000075

HEAD

4

5440000076

ROD

5

5440000077

SEAL KIT W/Ref. 10-13

6

5440000081

VALVE KIT W/Ref. 14-17

7

5440000086

ELBOW

8

5440000087

SCREW FITTING

9

5440000088

TUBELINE

10

WIPER RING NSS - Order Ref. 5

11

PISTON ROD SEAL NSS - Order Ref. 5

12

O-RING NSS - Order Ref. 5

13

SEAL NSS - Order Ref. 5

14

BOLT NSS - Order Ref. 6

15

SPRING NSS - Order Ref. 6

16

BOLT NSS - Order Ref. 6

17

PRESSURE SPRING NSS - Order Ref. 6
