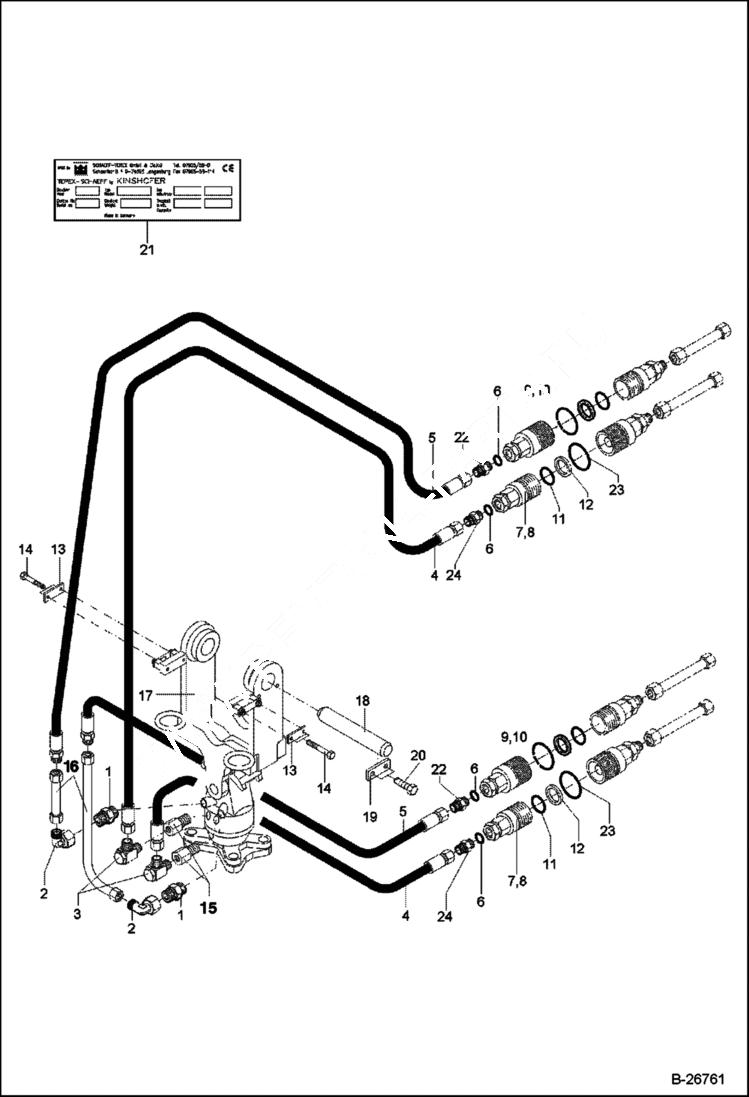

Запчасти Bobcat 442 HYDRAULIC INSTALLATION With Grab Suspension Direct Mounted - Type GM2 ACCESSORIES & OPTIONS

1

1915060264

FITTING

2

1924060154

ELBOW FITTING

3

1921060558

ELBOW

4

4260144359

HOSE 1400 MM

5

4262153383

HOSE 1520 MM

6

1970956719

O-RING

7

5260301140

COUPLING SOCKET

8

5260301147

COVER NUT

9

5260301145

COUPLING PLUG

10

5260301149

PLUG

11

1970956629

O-RING

12

5260301146

BACK UP RING

13

5440000407

FLAP

14

5440000412

BOLT

15

5440000408

REDUCER

16

5440000409

TUBELINE

17

5440000410

SUSPENSION Includes Ref. 18-20

18

5440000411

PIN

19

5440000276

AXLE HOLDER

20

5440000277

BOLT

21

NAME PLATE

22

1915060564

FITTING

23

1970956830

O-RING

24

1915060562

FITTING
