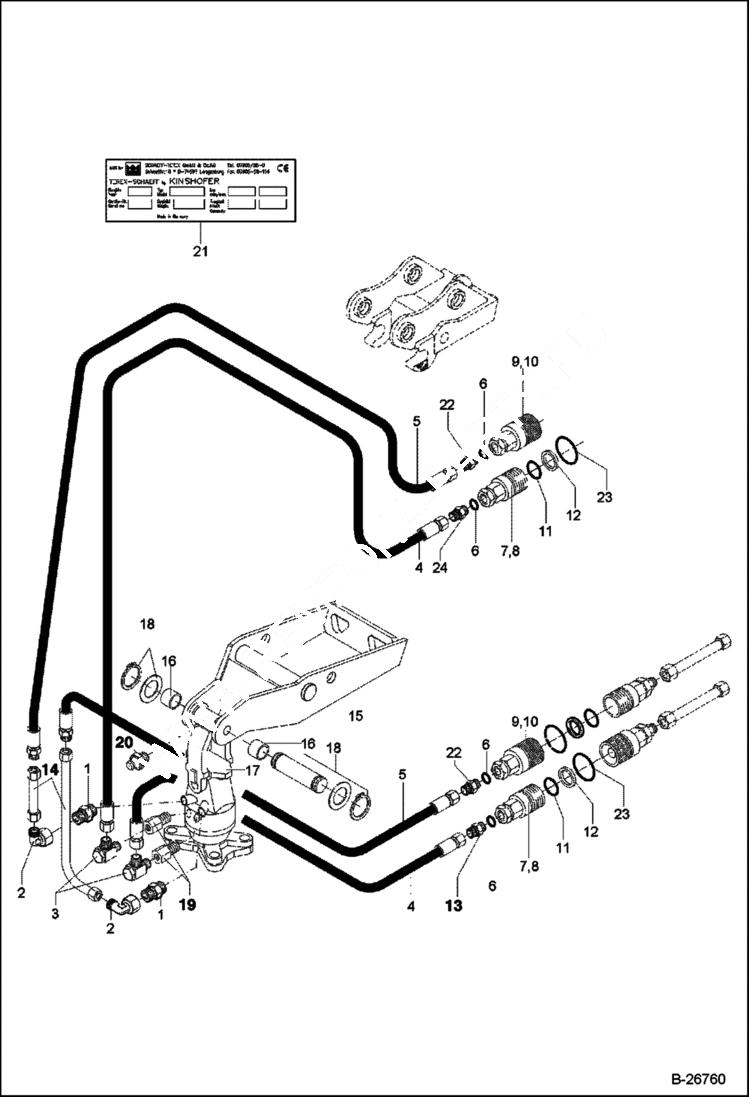

Запчасти Bobcat 442 HYDRAULIC INSTALLATION With Grab Suspension Quick Mount Hitch ACCESSORIES & OPTIONS

1

1915060264

FITTING

2

1924060154

ELBOW FITTING

3

1921060558

ELBOW

4

4260178359

HOSE

5

4262180383

HOSE

6

1970956719

O-RING

7

5260301140

COUPLING SOCKET

8

5260301147

COVER NUT

9

5260301145

COUPLING PLUG

10

5260301149

PLUG

11

1970956629

O-RING

12

5260301146

BACK UP RING

13

1915060562

FITTING

14

5440000409

TUBELINE

15

ADAPTER NLA - Was 5440000457 - A

16

5440000460

BUSHING, PIERCING

17

SUSPENSION NLA - Was 5440000458 - A

18

5440000459

PIN

19

5440000408

REDUCER

20

5440000006

GREASE ZERK

21

NAME PLATE

22

1915060564

FITTING

23

1970956830

O-RING
