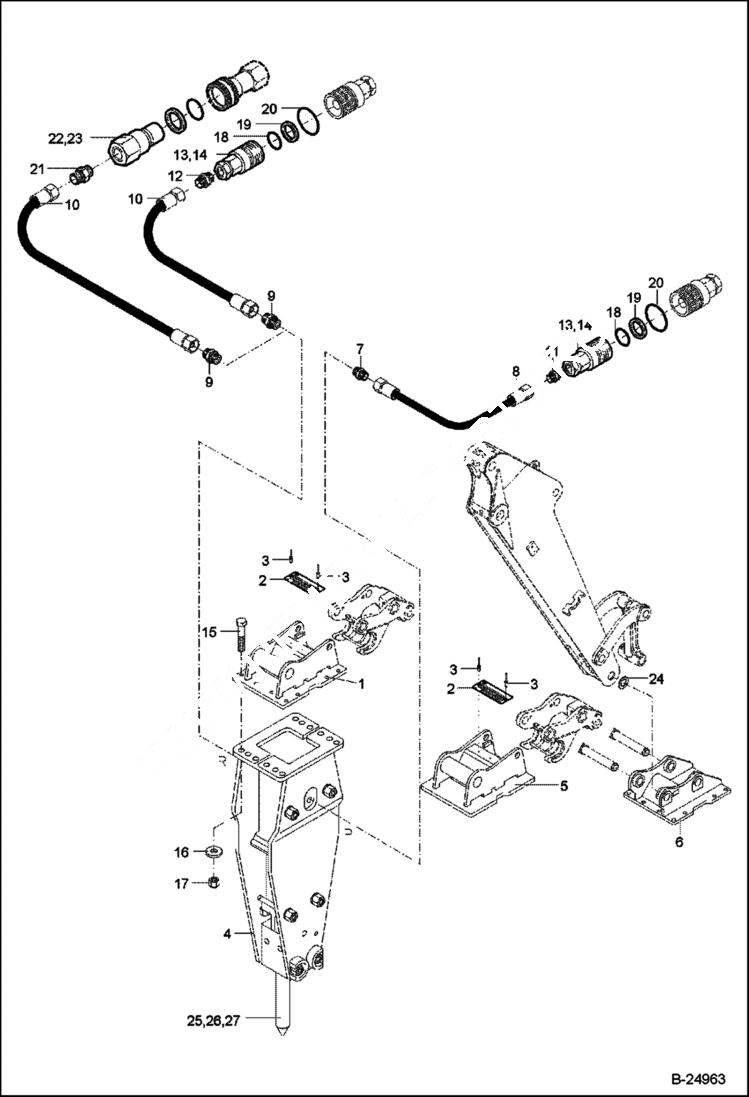

Запчасти Bobcat 442 HYDRAULIC HAMMER With Hydraulic Installation ACCESSORIES & OPTIONS

1

6209274002

BRACKET

2

NAME PLATE

3

1940000939

RIVET

4

HYDRAULIC HAMMER NLA - Was 5523655725 - A

5

6238224002

BRACKET

6

6190274502

SUPPORT BRACKET

7

1915000776

ADAPTER

8

4266150403

HOSE

9

1915000235

FITTING

10

4270150409

HOSE

11

1915060566

FITTING

12

1915060667

FITTING

13

5260301140

COUPLING SOCKET W/Ref. 18-20

14

5260301147

COVER NUT

15

1007707353

BOLT

16

1343707069

WASHER

17

1212251018

NUT

18

1970956629

O-RING

19

5260301146

BACK UP RING

20

1970956830

O-RING

21

5000009100

HOSE CONNECTOR

22

5000105100

COUPLING PLUG

23

5000106000

DUST CAP

24

0034006059

WASHER

25

5523655681

CHISEL, POINTED

26

5523655680

CHISEL, LONG POINTED Was 5523655681 - D

27

5523655687

CHISEL, FLAT
