Запчасти Bobcat 442 BUCKET Swiveling - Quick Release - MSO8 1500mm ACCESSORIES & OPTIONS

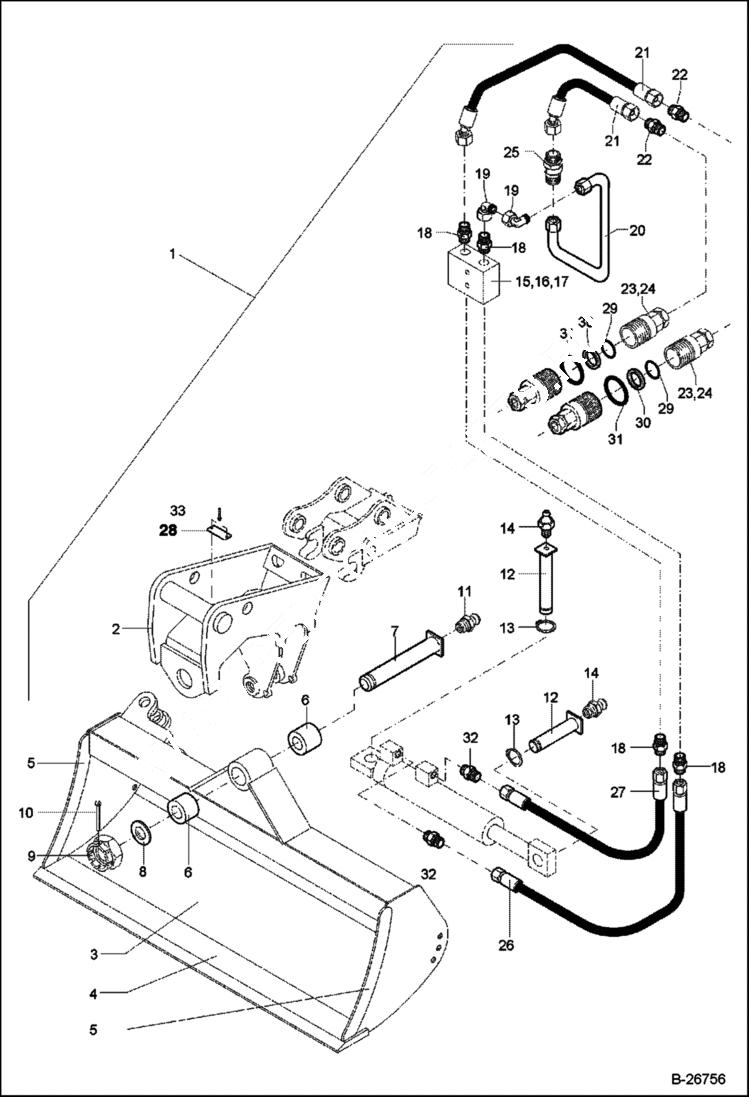

Схема запчастей Bobcat 442 - BUCKET Swiveling - Quick Release - MSO8 1500mm ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

BUCKET NLA - Was 6190246700 - A

2

5018001001

SWING ADAPTER

3

5018001071

SWIVEL BUCKET

4

5018001039

CUTTING EDGE

5

5018001028

CUTTING EDGE

6

5018001005

CLAMPING BUSH

7

5018001006

PIN

8

1290707076

SHIM

9

1218251840

CASTLE NUT

10

1218251840

CASTLE NUT

11

1607003010

GREASE NIPPLE

12

5018001007

PIN

13

5018001008

CIRCLIP

14

1607003008

GREASE NIPPLE

15

5018001040

VALVE

16

5018001015

BOLT

17

1307707014

WASHER

18

5018001017

FITTING

19

5018001018

FITTING

20

5018001072

TUBELINE

21

5018001073

HOSE

22

5018001021

FITTING

23

5260301140

COUPLING SOCKET

24

5260301147

COVER NUT

25

5018001024

FITTING

26

5018001025

HYDR. HOSE

27

5018001026

HYDR. HOSE

28

NAME PLATE

29

1970956629

O-RING

30

5260301146

BACK UP RING

31

1970956830

O-RING

32

5018001027

FITTING

33

1940000939

RIVET

Выбрано товаров: 33
