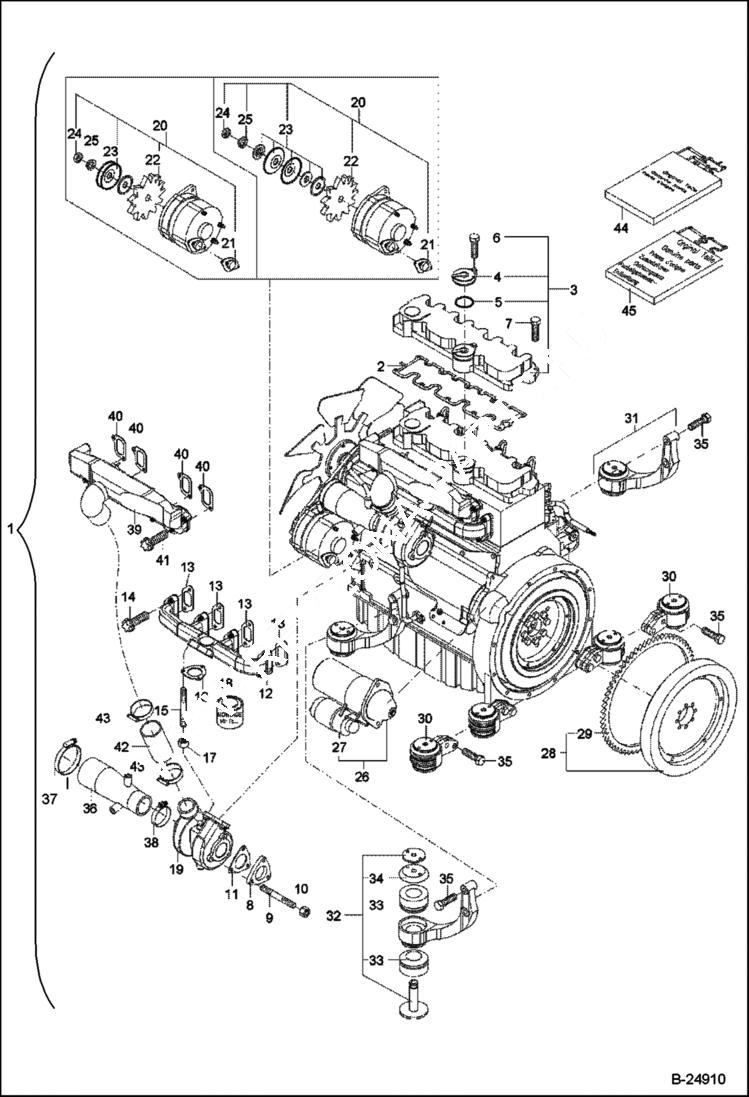

Запчасти Bobcat 442 ENGINE PARTS POWER UNIT

1

ENGINE, TEREX 442 NLA - Was 5411662265 - A

2

5411658001

GASKET Was 5411657056 - A

3

6672770

COVER W/Ref. 4 - 6

4

6688247

BREATHER VALVE W/Ref. 5

5

6669643

O-RING

6

6666695

BOLT

7

6672771

BOLT Was 6688145 - A

8

6673169

FLANGE

9

6666407

STUD

10

6681324

NUT

11

6665910

GASKET

12

6688244

EXHAUST MANIFOLD

13

6666472

GASKET

14

6673171

BOLT

15

6672947

STUD

16

6666473

GASKET

17

6672948

NUT

18

MOUNTING DEVICE

19

6688285

TURBOCHARGER

20

6988705

ALTERNATOR W/Ref. 21-25 - Was 6681357 - A

21

6681359

RELAY VOLTAGE

22

6688156

FAN

23

6688163

V-GROOVED PULLEY

24

6681261

NUT

25

6681358

WASHER SPRING

26

6988710

STARTER standard - W/Ref. 27 - Was 6688189 - A

26

7025611

STARTER heavy duty

27

6686200

COIL

28

6688276

FLYWHEEL W/ Ref. 29

29

6688253

GEAR RING

30

6688219

MOUNT ASSY

31

6688225

MOUNT ASSY W/ Ref. 33 - 34

32

6688224

MOUNT ASSY W/ Ref. 33 - 34

33

6688214

RUBBER MOUNT

34

6688213

COVER

35

6687846

BOLT

36

6715905

HOSE

37

6672935

CLAMP

38

6672936

CLAMP

39

6688306

SUCTION PIPE

40

6670315

GASKET

41

6670313

BOLT Was 6688184 - A

42

6688160

RUBBER SLEEVE

43

6666419

CLAMP

44

6688216

GASKET SET

45

6679134

GASKET KIT
