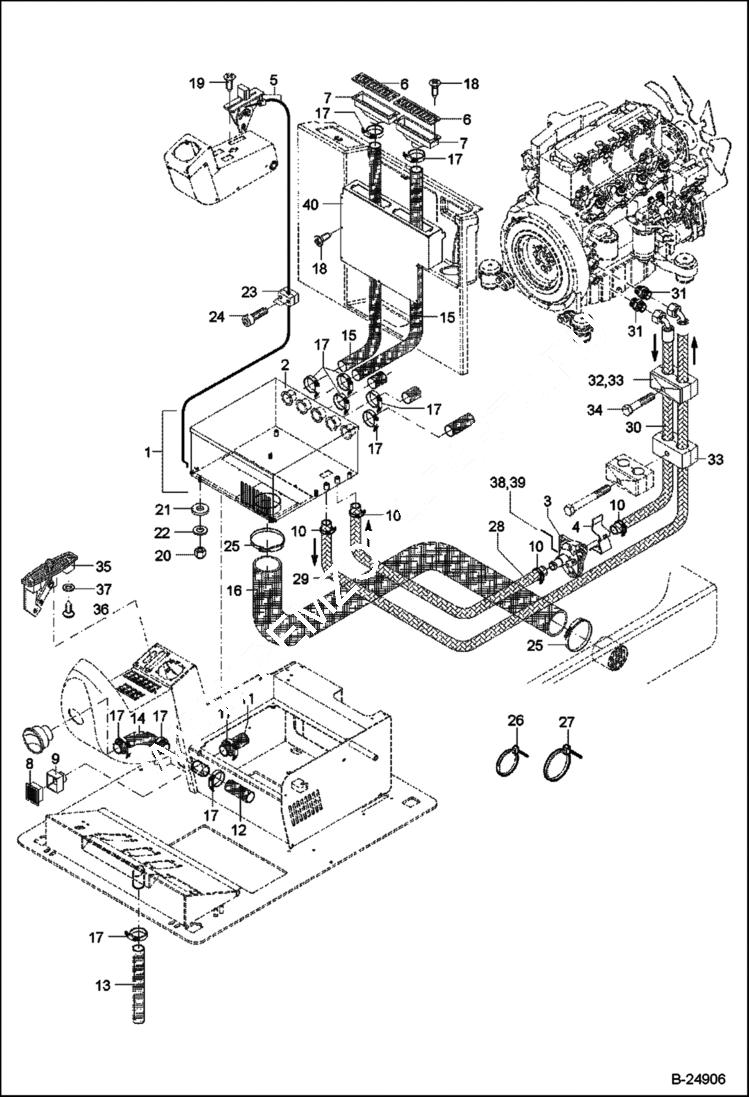

Запчасти Bobcat 442 HEATING 5289 11031 & Below POWER UNIT

1

5436662043

HEATING COMPLETE Includes Ref. 2 - 9

2

5436662075

HEATING BOX Was 5436662050 - A

3

5436662051

HEATER VALVE

4

5436662053

CLAMP

5

5436662052

FAN CNTRL ASSY

6

5436662054

LOUVER

7

5436662055

ADAPTER

8

5436662056

LOUVER

9

5436662057

ADAPTER

10

5660200090

CLAMP Was 5603320315 - A

11

5367628915

HOSE

12

5367628911

HOSE

13

5367628913

HOSE

14

5367628919

HOSE

15

5367628909

HOSE

16

5367628917

HOSE

17

5603320394

CLAMP

18

1087707324

SCREW

19

1087707009

SCREW

20

1212251011

NUT

21

1343707057

WASHER

22

1307707018

WASHER

23

5603330001

CLAMP

24

1045707213

BOLT

25

5660095500

CLAMP

26

5653093560

BINDER

27

5350650280

BINDER

28

5260116000

HOSE, BULK / METER Was 0234018010 - A

29

4116340116

HOSE

30

4116315116

HOSE

31

1915060565

ADAPTER

32

5660200230

COVER PLATE

33

5660199783

CLIP

34

1007707319

BOLT

35

5388662385

REGULATOR

36

1090707742

SCREW

37

1307707012

WASHER

38

5388662389

BOWDEN CABLE

39

1290707012

WASHER

40

6234006060

CONSOLE
