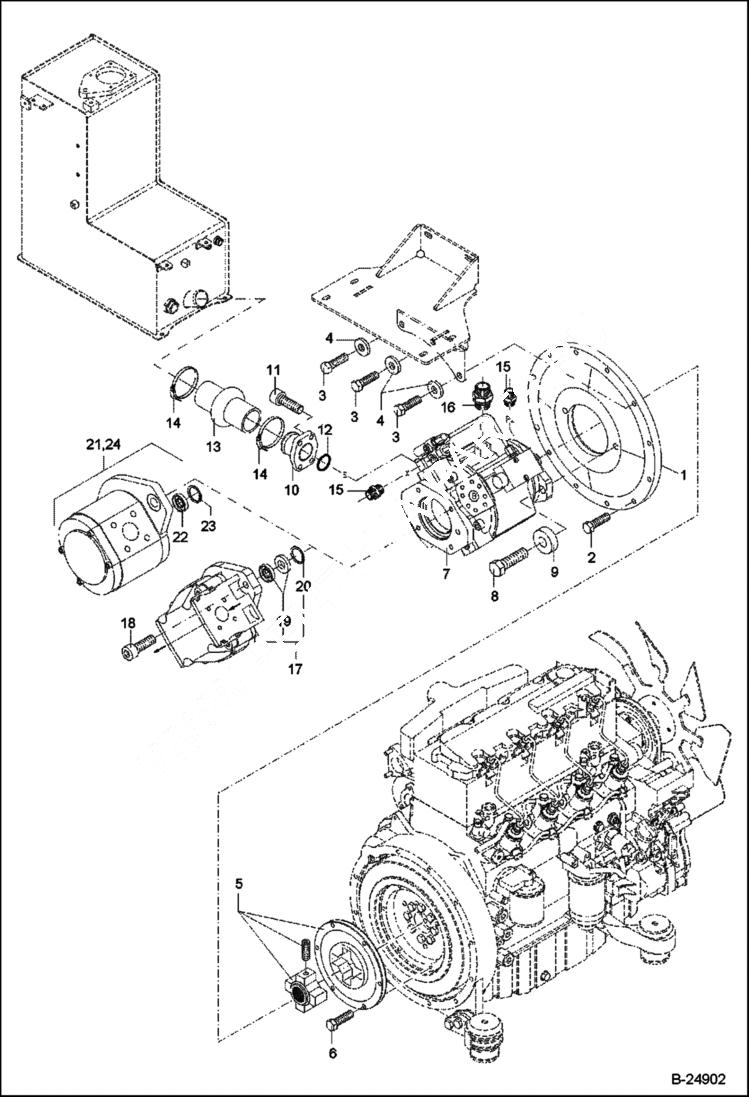

Запчасти Bobcat 442 PUMPS MOUNTING POWER UNIT

1

5105660741

MOUNTED FLANGE

2

1008707324

BOLT

3

1008707524

BOLT

4

1343707059

WASHER

5

5105660749

CLUTCH

6

1008707318

BOLT

7

5364662488

PUMP, HYD TANDEM

8

1008707041

BOLT

9

0176017010

WASHER

10

0190017004

SUCTION FLANGE

11

1045707590

BOLT

12

1971956332

O-RING

13

5210657358

COMPENSATOR

14

5660200105

HOSE CLIP

15

1939060101

FITTING

16

1939060609

FITTING

17

5050662432

GEAR PUMP W/Ref. 19 & 20 - Was 5100620040 - A

18

1046707030

BOLT

19

5100659048

SHAFT SEAL

20

5100659049

CIRCLIP

21

5050662432

GEAR PUMP W/Ref. 22

22

5050662435

SEAL, SHAFT

23

5050662436

CIRCLIP

24

5050659231

KIT, SEAL
