Запчасти Bobcat 442 HYDRAULIC CYLINDER Support Blade USA HYDRAULIC SYSTEM

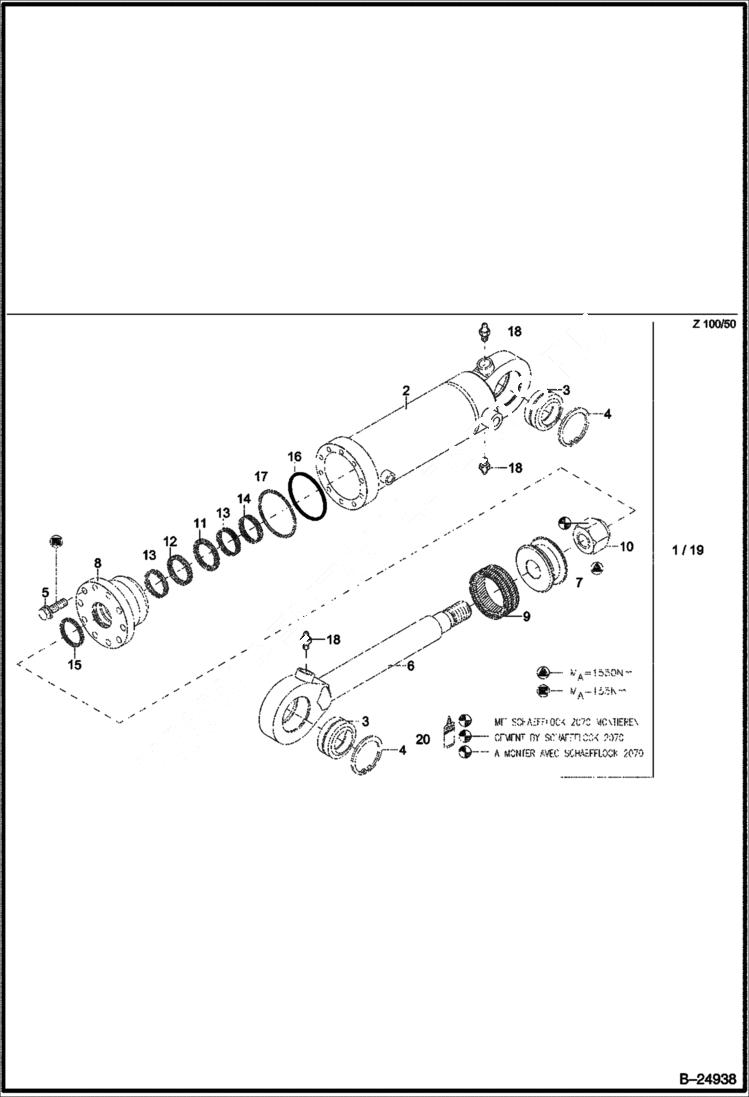

Схема запчастей Bobcat 442 - HYDRAULIC CYLINDER Support Blade USA HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6500925500

HYDR. CYLINDER Includes Ref. 2-17

2

6500925503

CYLINDER BARREL

3

1950000814

LINKAGE BEARING

4

1456622363

CIRCLIP

5

1017370230

BOLT

6

6500925111

PISTON ROD

7

0500926015

PISTON

8

0500949017

BUSHING

9

1634935018

PISTON SEAL

10

1212251832

NUT

11

1965055050

SEAL

12

1960955050

GROOVE

13

5060501050

ROAD SEAL

14

5060502050

ROD SEAL

15

1974950050

SCRAPER RING

16

1971958513

O-RING

17

1966960100

BACK UP RING

18

1607003006

GREASE NIPPLE

19

1976999279

SEAL KIT Includes Ref. 9-17

20

GLUE NLA - Was MCS001036A - A

Выбрано товаров: 20
