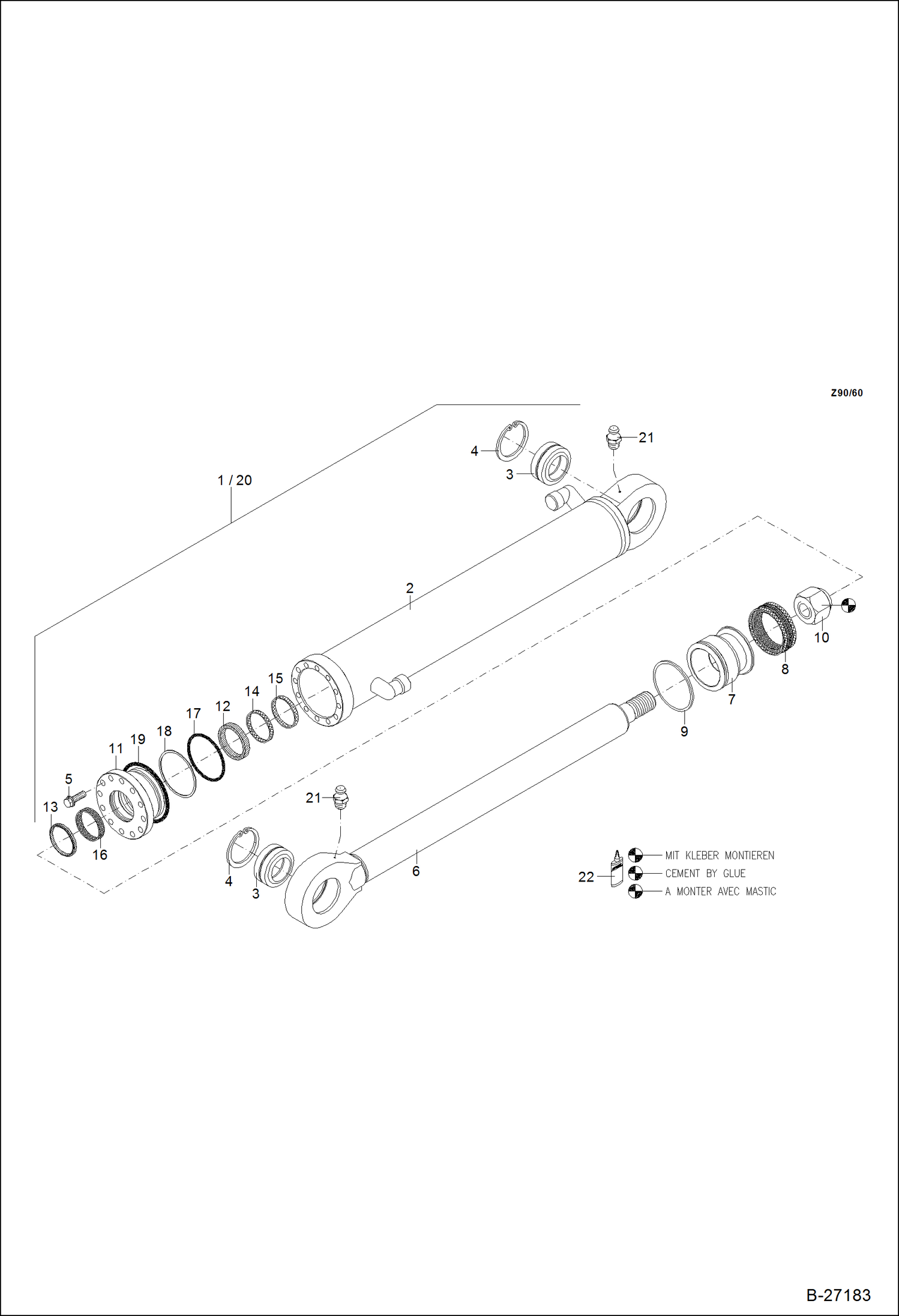

Запчасти Bobcat 442 HYDRAULIC CYLINDER Bucket ESA HYDRAULIC SYSTEM

1

6500778700

HYDR. CYLINDER Includes Ref. 2-19

2

6500778703

CYLINDER BARREL

3

1950000814

LINKAGE BEARING

4

1456622363

CIRCLIP

5

1008341124

BOLT

6

6500778111

PISTON ROD

7

0500778515

PISTON

8

1634935661

PISTON SEAL

9

5074609230

SEGMENT

10

1212251836

NUT

11

0500778517

PIERCING BUSHING

12

1965956675

ROD SEAL

13

1974955060

SCRAPER RING

14

5060503060

ROD SEAL

15

5060502060

GUIDING RING

16

5060507060

ROD SEAL

17

1971958509

O-RING

18

1966960908

BACK UP RING

19

1971956438

O-RING

20

1976999097

SEAL KIT Ref. 8-18

21

1607003006

GREASE NIPPLE

22

GLUE NLA - Was MCS001036A - A
