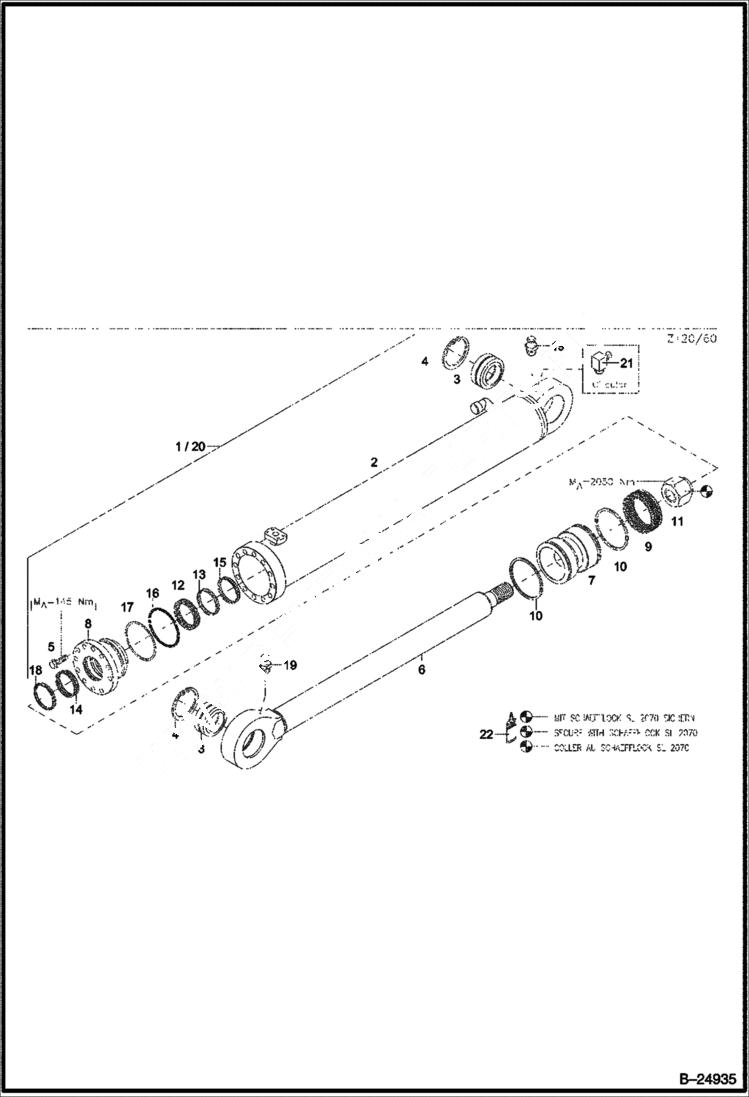

Запчасти Bobcat 442 HYDRAULIC CYLINDER Boom USA HYDRAULIC SYSTEM

1

6501609000

HYDR. CYLINDER Includes Ref. 2-18

2

6501609003

CYLINDER BARREL

3

1950000865

LINKAGE BEARING

4

1456622369

CIRCLIP

5

1017370230

BOLT

6

6501388711

PISTON ROD

7

0501609015

PISTON

8

6501609017

PIERCING BUSHING Was 0501609017 - A

9

1634934120

PISTON SEAL

10

5074609265

SEGMENT

11

1212251840

NUT Was 6501544084 - A

12

1965956675

ROD SEAL

13

5060503060

ROD SEAL

14

5060507060

ROD SEAL

15

5060502060

GUIDING RING

16

1970960869

O-RING

17

1969956112

SPIRAL RING

18

1974955060

SCRAPER RING

19

1607003006

GREASE NIPPLE

20

1976999617

SEAL KIT Includes Ref. 9-18

21

1609003006

GREASE NIPPLE circular boom

22

GLUE NLA - Was MCS001036A - A
