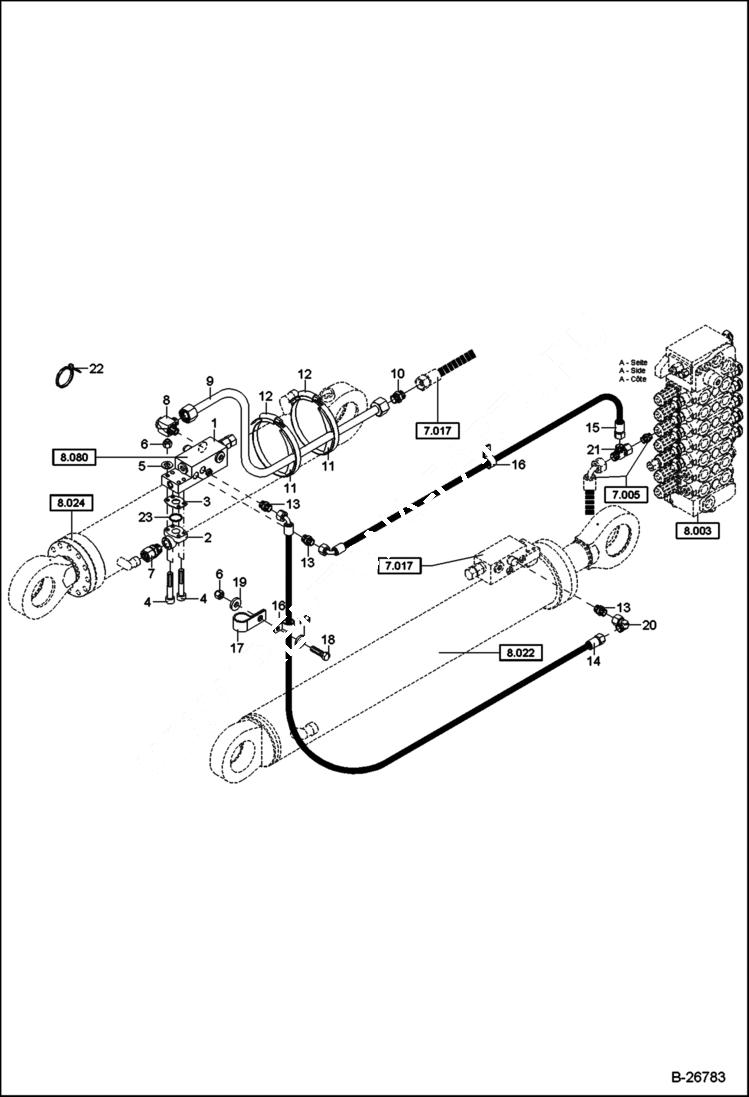

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Load Holding Valve Dipper Arm - Circular HYDRAULIC SYSTEM

1

5167659758

LOAD CHECK VALVE

2

5000261400

FLANGE

3

5000281401

SPACER

4

1045707719

BOLT

5

1290707018

WASHER

6

1212251011

NUT

7

1938060167

SCREWED SOCKET

8

1921060570

FITTING

9

0190211035

TUBELINE

10

1915060871

FITTING

11

0110012050

RUBBER LAYER

12

5660095200

HOSE CLIP

13

1915060255

FITTING

14

4506270371

HOSE

15

4506540371

HOSE

16

5000136800

HOSE CLIP

17

5000136700

HOSE CLIP

18

1008707318

BOLT

19

1343707057

WASHER

20

1924060151

FITTING

21

1919060351

FITTING

22

5350650294

BINDER

23

1971956010

O-RING
