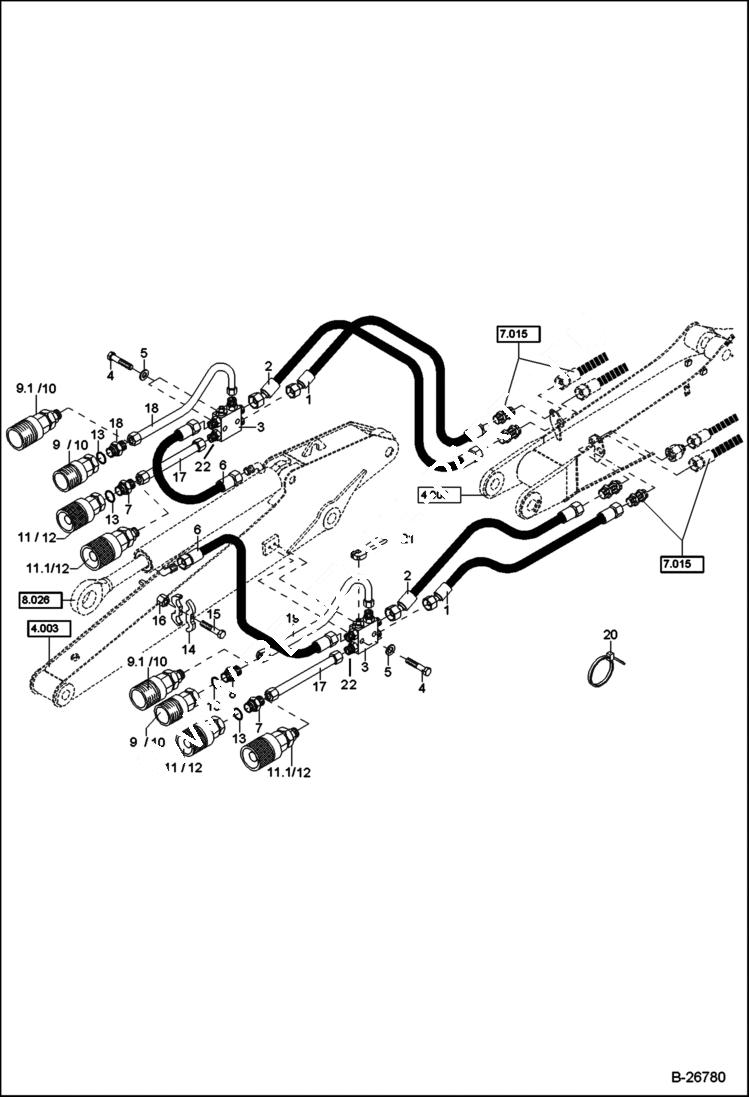

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Dipper Arm, Mono 2200mm HYDRAULIC SYSTEM

1

4266120404

HOSE

2

4466123501

HOSE

3

5001207159

DISTRIBUTOR BLOCK

4

1007707724

BOLT

5

1343707059

WASHER

6

4466097500

HOSE

7

1915060566

FITTING

8

FITTING NLA - Use Kit 6501661503 - Was 1915060677 - A

9

5260301140

COUPLING SOCKET

9

5260308016

COUPLING SOCKET

10

5260301147

COVER NUT

11

5260301145

COUPLING PLUG

11

5260308014

COUPLING PLUG

12

5260301149

PLUG

13

1970956719

O-RING

14

0190106020

PIPE CLIP

15

1007707025

BOLT

16

1212251013

NUT

17

0190162020

TUBING

18

0190162025

TUBING

19

0190162030

TUBING

20

5653093560

BINDER

21

5001207157

HANDLE

22

5001207160

ADAPTER, ACTUATOR
