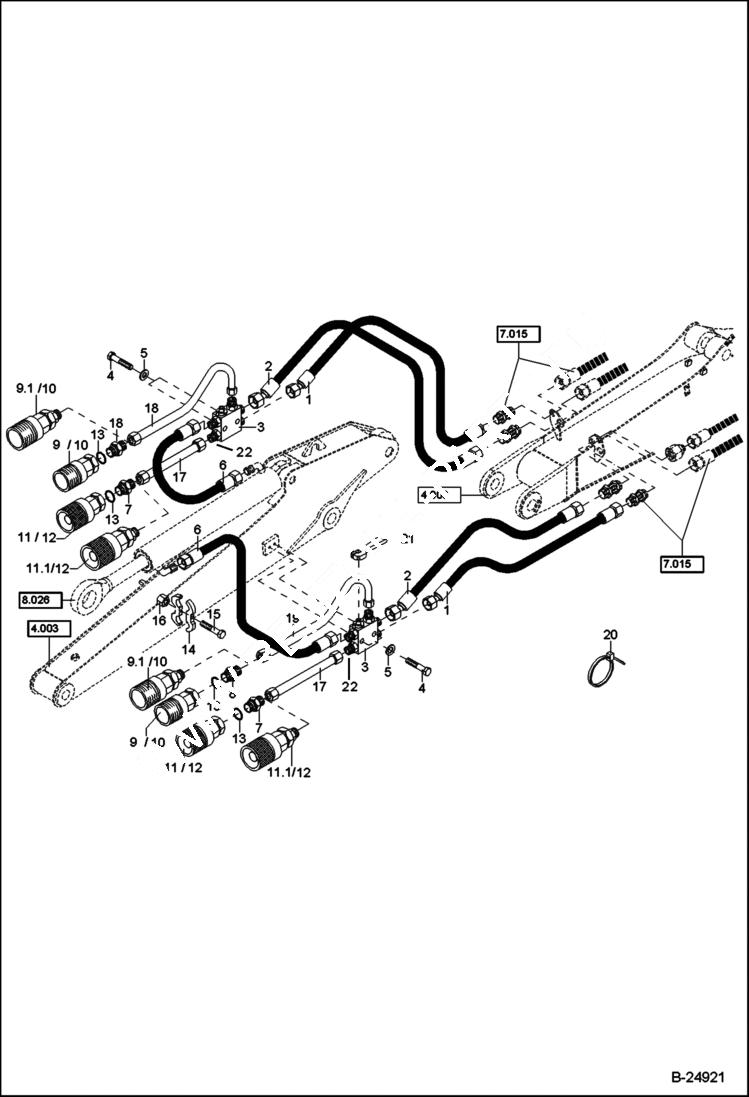

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Dipper Arm, Mono 2000mm HYDRAULIC SYSTEM

1

4266120404

HOSE

2

4466123501

HOSE

3

5001207159

DISTRIBUTOR BLOCK

4

1007707724

BOLT

5

1343707059

WASHER

6

4466075500

HOSE

7

1915060566

FITTING

8

FITTING NLA - Use Kit 6501661503 - Was 1915060677 - A

9

5260301140

COUPLING SOCKET

9

5260308016

COUPLING SOCKET

10

5260301147

COVER NUT

11

5260301145

COUPLING PLUG

11

5260308014

COUPLING PLUG

12

5260301149

PLUG

13

1970956719

O-RING

14

0190106020

PIPE CLIP

15

1007707025

BOLT

16

1212251013

NUT

17

0203220020

TUBING L2B2N

18

0190107018

TUBING S4B2N

19

0190107020

TUBING S4B2N

20

5653093560

BINDER

21

5001207157

HANDLE

22

5001207160

ADAPTER, ACTUATOR
