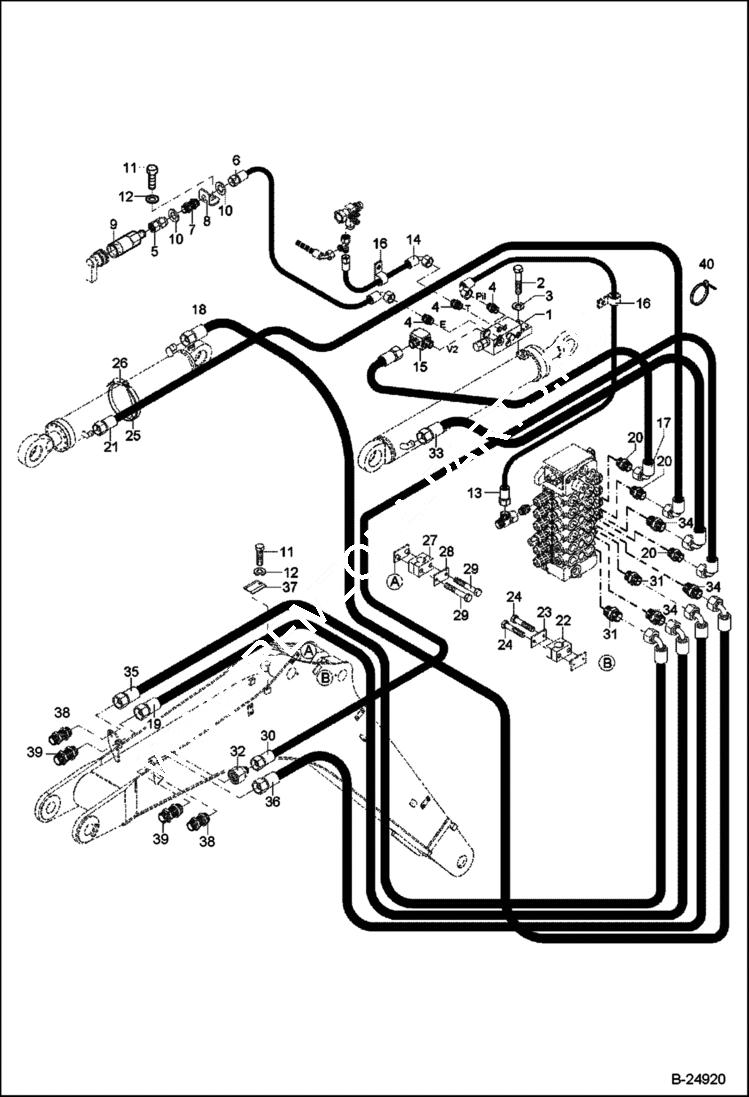

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Boom Mono HYDRAULIC SYSTEM

1

5167659758

LOAD CHECK VALVE

2

1007707019

BOLT

3

1290707018

WASHER

4

1915060255

FITTING

5

1943000101

CONNECTION

6

5066315843

HOSE

7

1913060151

FITTING

8

6203212010

ANGLE

9

5154650507

PRESSURE ABSORBER Was 5066315828 - A

10

1290707025

WASHER

11

1008707018

BOLT

12

1343707057

WASHER

13

4506290351

HOSE

14

4506366351

HOSE

15

1921060570

FITTING

16

5000210400

HOSE CLIP

17

4462370441

HOSE

18

4466451512

HOSE

19

4466506512

HOSE

20

1915060476

FITTING

21

4462520441

HOSE

22

5660199787

HOSE CLIP

23

5660200130

COVER

24

1007707014

BOLT

25

0110012050

RUBBER LAYER

26

5660095200

HOSE CLIP

27

5660199802

HOSE CLIP

28

5660200140

COVER PLATE

29

1007707214

BOLT M6x45 grade 8.8

30

4462495441

HOSE

31

1915060470

FITTING

32

1934060219

FITTING

33

4466389512

HOSE

34

1915060278

FITTING

35

4266496376

HOSE

36

4266488376

HOSE

37

6190105031

BRACKET Was 4266488376 - D

38

1913060155

FITTING

38

1636815379

SEAL RING

39

1913060166

FITTING

39

1636815281

SEAL RING

40

5653093560

BINDER
