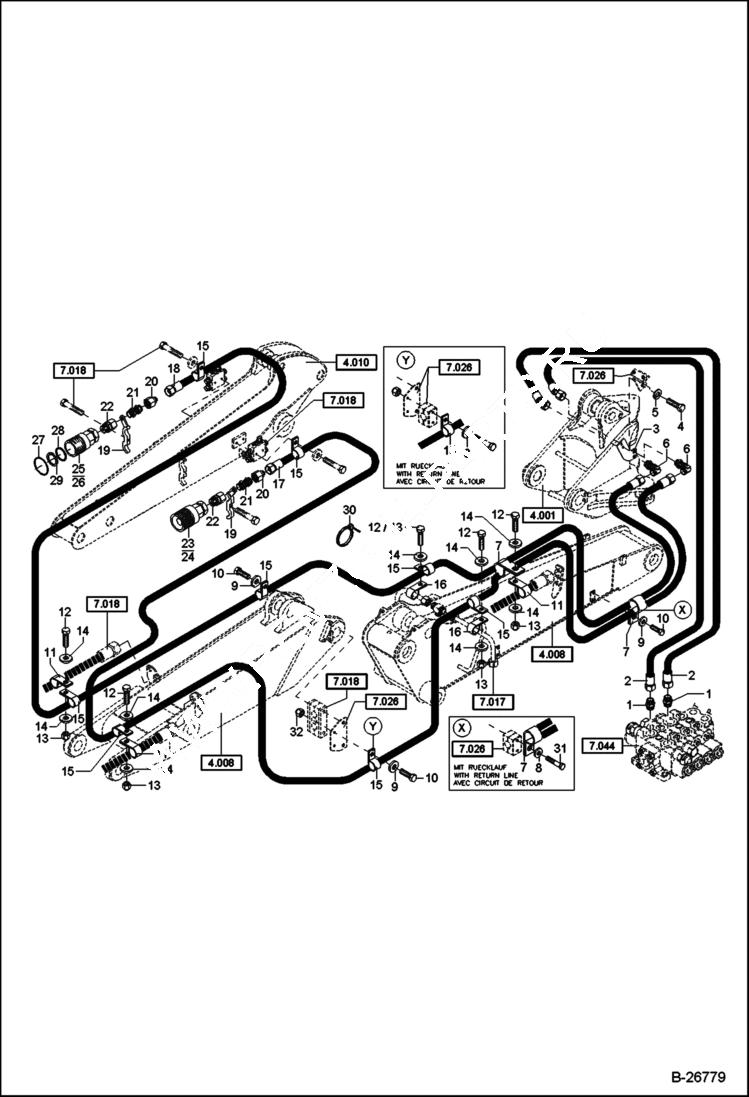

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Additional Circuit Circular HYDRAULIC SYSTEM

1

1915060359

FITTING

2

4158215366

HOSE

3

0190303006

BRACKET

4

1008707018

BOLT

5

1290707018

WASHER

6

1931060152

FITTING

7

5000210400

HOSE CLIP

8

1343707055

WASHER

9

1343707061

WASHER

10

1008707512

BOLT

11

5000136700

HOSE CLIP

12

1008707318

BOLT

13

1212251011

NUT

14

1343707057

WASHER

15

5000095200

HOSE CLIP

16

5000095800

HOSE CLIP

17

4158540301

HOSE

18

4158580301

HOSE

19

6190303010

PIPE CLIP

20

1934060155

FITTING

21

1913060153

FITTING

22

1938060459

FITTING

23

5260301135

COUPLING PLUG

24

5260301139

PLUG

25

5260301130

COUPLING SOCKET W/Ref. 27, 28, 29

26

5260301137

COVER NUT

27

1970956929

O-RING

28

1970956828

O-RING

29

5260301136

BACK UP RING

30

5350650280

BINDER

31

1007707314

BOLT

32

1212251009

NUT
