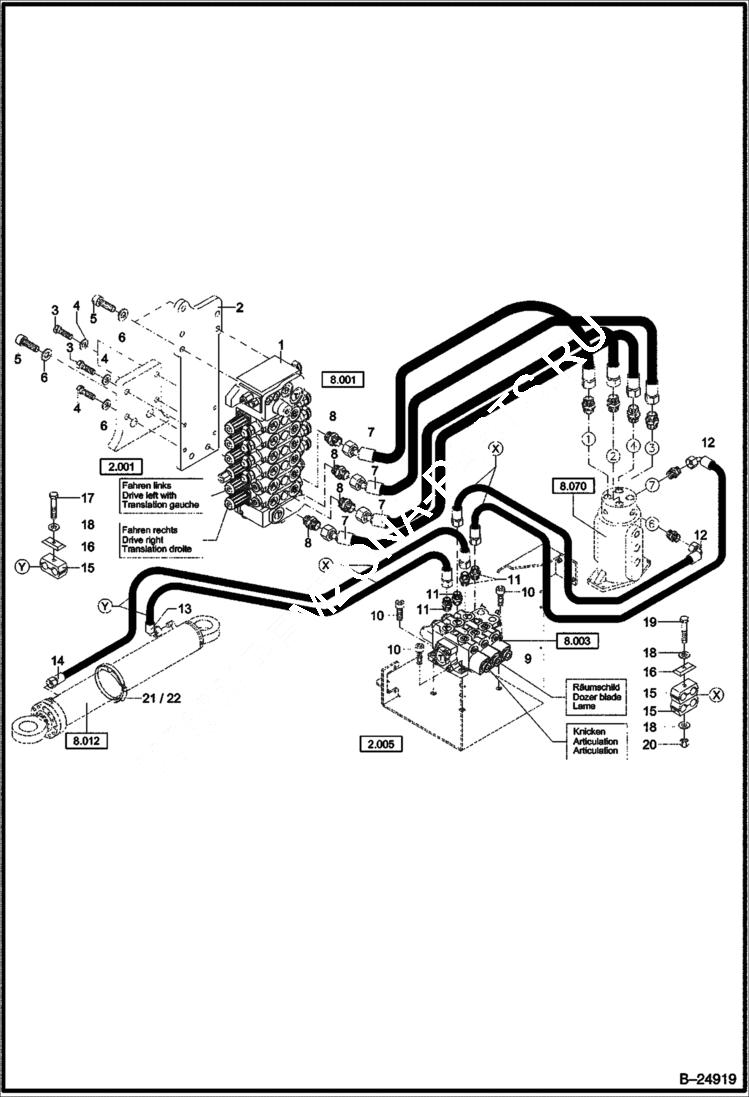

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Articulation, Drive HYDRAULIC SYSTEM

1

5606660410

VALVE, CONTROL 6 section valve bank - Includes Ref. 2-9

2

6190008010

VALVE BRACKET

3

1008707230

BOLT

4

1290707022

WASHER

5

1045707036

BOLT

6

1290707025

WASHER

7

4266052404

HOSE

8

1915060470

FITTING

9

5606665063

VALVE, CONTROL 3 section valve bank, Includes ref. 2-6 - Was 5606660408 - A

10

1045707124

BOLT

11

1915060262

FITTING

12

4260150374

HOSE

13

5003700026

NUT W/SEAL W/Ref. 14

13

4260232374

HOSE

14

4260244359

HOSE

15

5660199785

HOSE CLIP

16

5660200230

COVER PLATE

17

1007707220

BOLT

18

1290707018

WASHER

19

1007707520

BOLT

20

1212251011

NUT

21

5660095400

HOSE CLIP

22

0110012050

RUBBER LAYER
