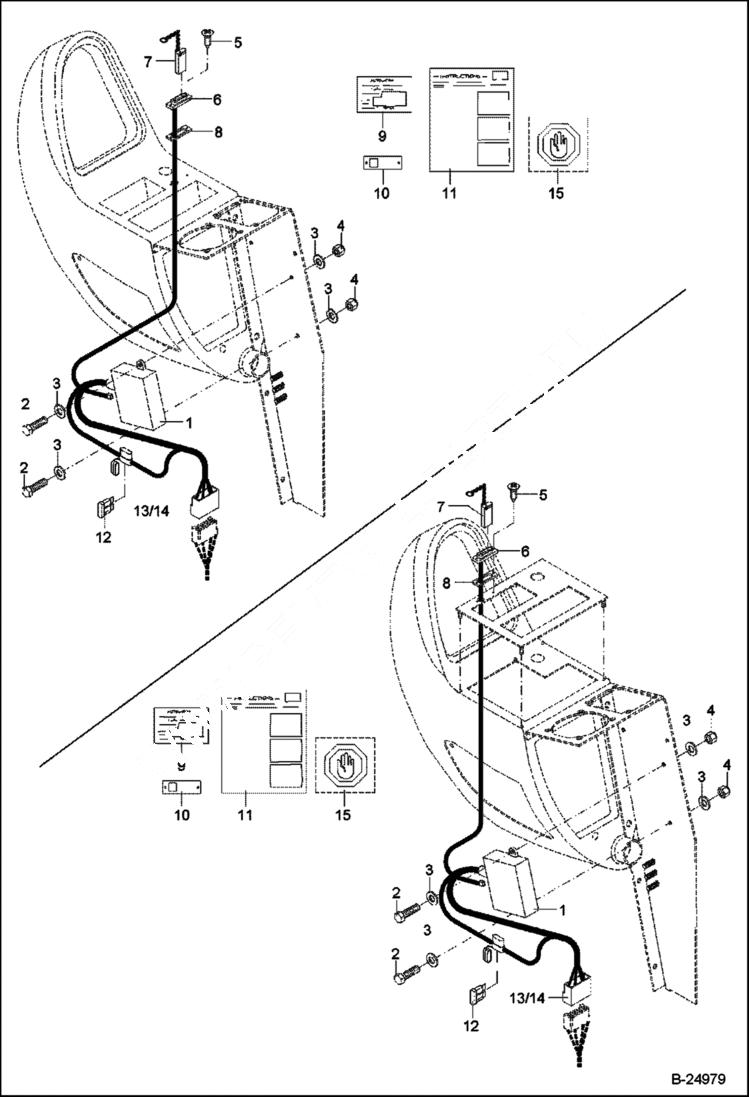

Запчасти Bobcat 442 ELECTRIC INSTALLATION Immobilizer ELECTRICAL SYSTEM

1

0186856002

IMMOBILIZER KIT W/Ref. 5-12

2

1008707909

BOLT

3

1290707012

WASHER

4

1212251007

NUT

5

1115020018

SCREW

6

5755627401

LOCK

7

5755627400

ACTIVATOR

8

SEAL NSS

9

TEMPLATE NSS

10

CODE CARD NSS

11

OPERATING INSTRUCTIONS NSS

12

5050650519

LOCK

13

5350249506

CONNECTOR

14

5350247311

TERMINAL MALE

15

DANGER SIGN
