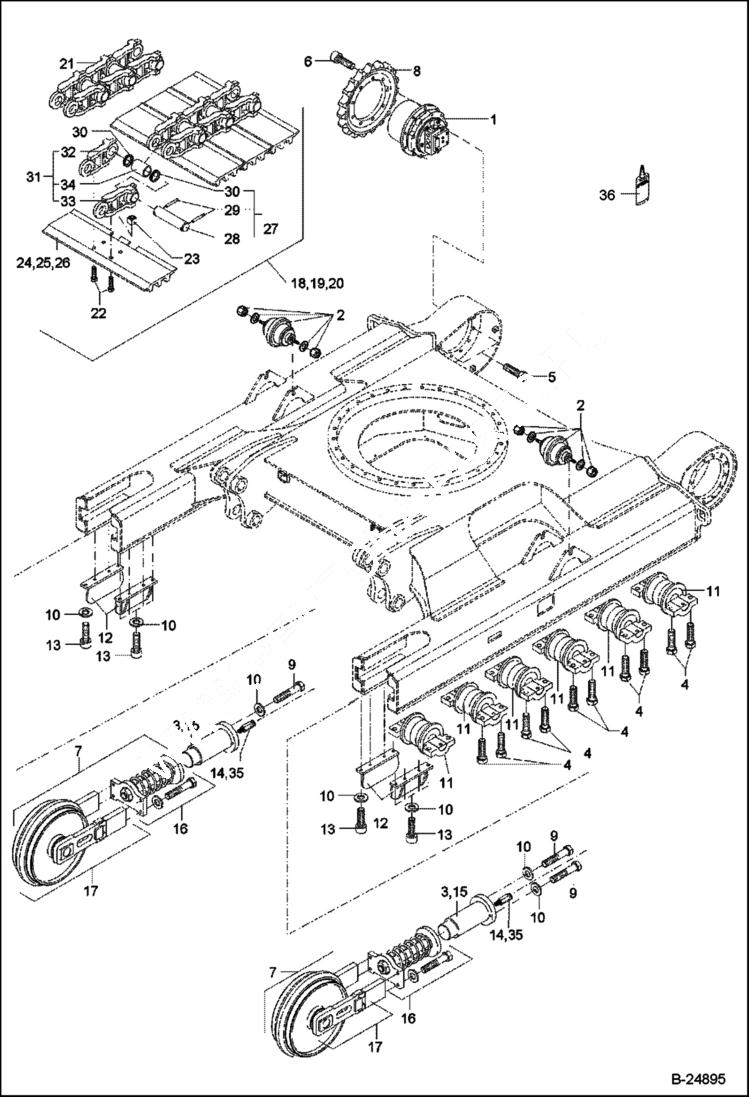

Запчасти Bobcat 442 TRACK VERSION Steel Track UNDERCARRIAGE

1

5459660217

MOTOR, DRIVE HYD Was 5999991227 - D

2

5527640005

ROLLER

3

5671663035

CYLINDER W/Ref. 15 - Was 5671658430 - A

4

1007707630

BOLT

5

1008907036

BOLT

6

1045907041

BOLT

7

5671663003

IDLER, TRACK FRONT W/Ref. 16 & 17 - Was 5671658434 - A

8

5671663005

SPROCKET Was 5671658426 - A

9

1007707430

BOLT

10

1290707022

WASHER

11

5671663001

TRACK ROLLER Was 5671658420 - A

12

6190002060

IDLER COVER

13

1045707829

BOLT

14

5382211542

NIPPLE

15

5671658512

SEAL KIT

16

SPRING KIT Was 5671660290 - A

17

ILDER ASSY Was 5671660289 - A

18

5671658424

TRACK, STEEL 450mm - Includes Ref. 21 - 23 & 24

19

5671658475

STEEL TRACK 500mm - Includes Ref. 21 - 23 & 25

20

5671658485

STEEL TRACK 600mm - Includes Ref. 21 - 23 & 26

21

5671660266

STEEL TRACK

22

5671658333

BOLT

23

5671658334

NUT

24

5671660285

GROUSER Was 5671660270 - A

25

5671658332

TRACK SHOE (600MM)

26

5671660269

TRACK SHOE (450MM)

27

5671658508

PIN Includes Ref. 28 - 30

28

MASTER PIN NSS

29

COTTER PIN NSS

30

SPACER RING NSS

31

5671658510

REPAIR LINK ASSY Includes Ref. 32 - 34

32

TRACK LINK LEFT NSS

33

TRACK LINK RIGHT NSS

34

TRACK BRUSHING NSS

35

1955005118

SEAL RING

36

MCS001035A

GLUE
