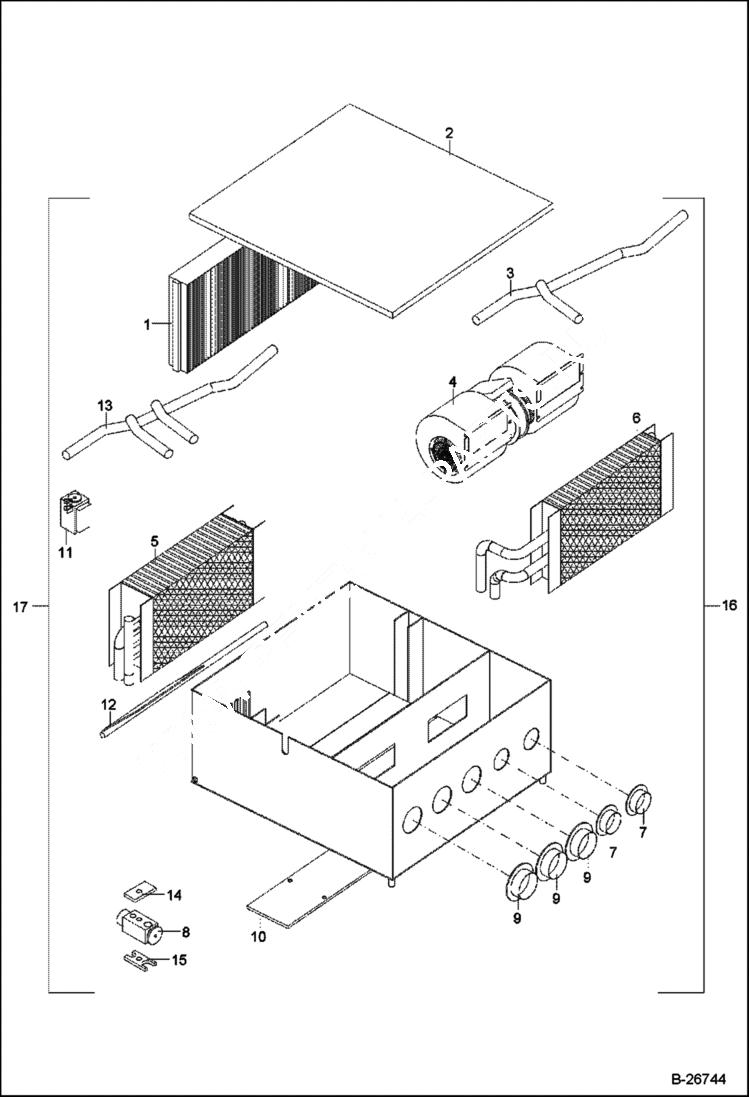

Запчасти Bobcat 442 HEATING/AIR CONDITIONING 5289 11001 & Above MAIN FRAME

1

5501661034

FILTER ELEMENT

2

5436662082

COVER

3

5436662083

WIRE HARNESS

4

5436662084

FAN

5

5436662064

EVAPORATOR COIL

6

5436662085

HEATER COIL

7

5436662086

ADAPTER HOSE

8

5436662022

VALVE

9

5436662087

HOSE NIPPLE

10

5436662088

COVER

11

5436662008

THERMOSTAT

12

5436662089

AIR FLAP

13

5436662065

WIRE HARNESS

14

5436662023

VACUUM ELEMENT

15

5436662024

PLATE

16

5436662075

HEATING BOX Includes Ref. 1-4, 7, 10 & 12 - Was 5436662050 - A

17

5436662073

HVAC UNIT ASSY Includes Ref. 1, 2 & 4-15
