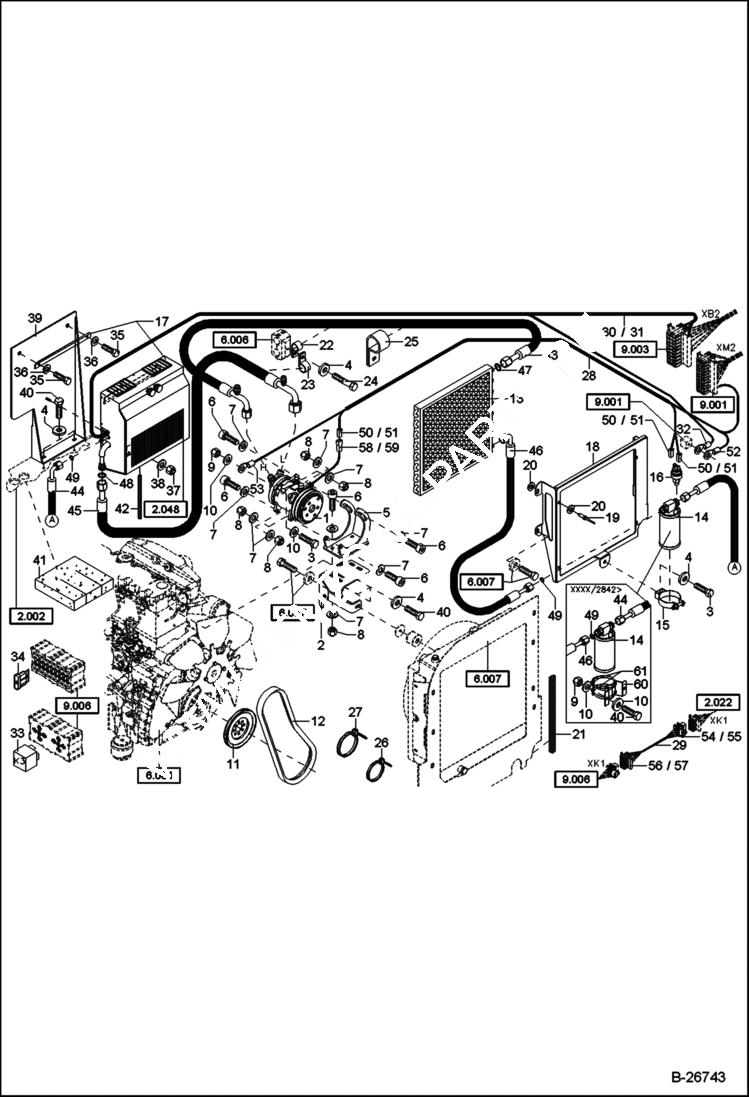

Запчасти Bobcat 442 AIR CONDITIONING 5289 11022 & Above MAIN FRAME

1

5436662003

COMPRESSOR, A/C

2

6234271025

BRACKET

3

1008707318

BOLT

4

1343707057

WASHER

5

6208771020

BRACKET, COMPRESSOR

6

1045707324

BOLT

7

1290707020

WASHER

8

1212251013

NUT

9

1212251011

NUT

10

1290707018

WASHER

11

5411657028

PULLEY

12

1490953974

BELT

13

5436662036

CONDENSER, A/C

14

5436662004

DRIER, A/C ASSY

15

5436662005

BRACKET

16

5436662006

PRESSURE SWITCH

17

7022922

EVAPORATOR Was 5436662033 - A

18

6234272030

BRACKET

19

1940000939

RIVET

20

1307707012

WASHER

21

5354600010

RUBBER PROFILE

22

5000136820

HOSE CLIP

23

5000210400

HOSE CLIP

24

1007707719

BOLT

25

5000210450

HOSE CLIP

26

5653093560

BINDER

27

5350650280

BINDER

28

0234272020

WIRE HARNESS W/Ref. 50-53

29

0234272230

WIRE HARNESS W/Ref. 54-57

30

WIRE HARNESS NLA - Was 6190272024 - A

31

5350249552

CONNECTOR

32

5350246610

CABLE CONNECTOR

33

5050247335

RELAY

34

5050650266

FUSE

35

1008707213

BOLT

36

1290707014

WASHER

37

1212251009

NUT

38

1343707055

WASHER

39

6183772012

BRACKET

40

1008707018

BOLT

41

0190371015

INSULATION

42

0465515052

HOSE

43

6190272040

HOSE

44

5436662011

HOSE

45

5436662013

HOSE

46

6190272043

HOSE

47

5821662084

O-RING

48

5436662117

O-RING

49

7031516

O-RING Was 5436662098

50

5350249536

HOUSING

51

5350246815

FEM TERMINAL

52

5350249597

CABLE CONNECTOR

53

5350246600

CABLE CONNECTOR

54

5350249692

CONNECTOR

55

5350249695

MAL TERMINAL

56

5350249685

CONNECTOR

57

5350249552

CONNECTOR

58

5350249537

CONNECTOR MALE

59

5350247311

TERMINAL MALE

60

SUPPORT BRACKET NLA - Was 6207772040 - A

61

5603320370

HOSE CLIP
