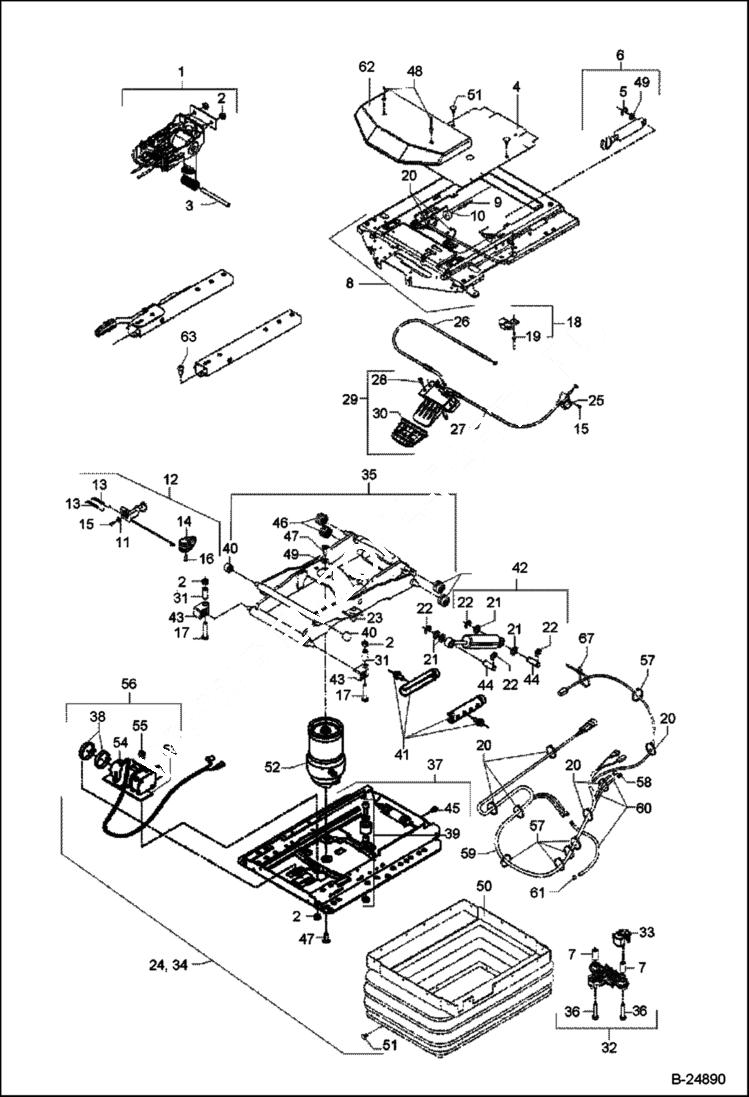

Запчасти Bobcat 442 OPERATORS SEAT Suspension MSG 95 MAIN FRAME

1

5305670045

LEVEL CONTROL W/Ref. 2, 3, 15, 20, 25, 45, 51, 57 & 58

2

NUT

3

PIN

4

5305670046

COVER

5

5305670228

WASHER

6

5305670269

SHOCK ABSORBER CPL. W/ Ref. 5, 49 & 51

7

5305670048

BUSHING

8

5305670270

UPPER PART, CPL. W/Ref. 2, 10 & 12 - Was 5305670049 - A

9

1940000939

RIVET Was 5305670161 - A

10

5305670271

BUMPER CPL. W/ Ref. 9 - Was 5305670050 - A

11

5305670209

WASHER

12

5305670272

STOP DEVICE CPL. W/Ref. 11 & 13 - Was 5305670162 - A

13

5305670273

TENSION SPRING Was 5305670163 - A

14

5305670164

HANDLE CPL W/Ref. 16

15

BOLT Was 5305670227 - A

16

5305670166

BOLT

17

PIN

18

5305670167

STOP CPL W/ Ref. 19 & 51

19

5305670168

RIVET

20

BINDER Was 5305670203 - A

21

WASHER Was 5305670169 - A

22

5305670131

WASHER

23

5305670029

STOP

24

5305670274

WEAR PARTS SET Includes Ref. 2, 7, 10 & 19 - Was 5305670224 - A

25

BRACKET Was 5305670053 - A

26

5305670054

BOWDEN CABLE W/ Ref. 28 & 51

27

5305670055

CABLE ASSY W/ Ref. 15, 25, 28 & 51

28

5305670026

BOLT

29

5305670056

CONTROL UNIT W/ Ref. 28, 30 & 51

30

5305670057

HANDLE

31

5305670171

PIPE

32

5305670275

SPRING CPL. W/ Ref. 7, 10, 19, 31, 33, 36 & 51 - Was 5305670058 - A

33

5305670059

BUMPER

34

5305670225

SUSPENSION

35

5305670226

ROCKER CPL W/ Ref. 2, 19, 20 - 23, 31, 40 - 44, 46, 47, 49, 51, 55, 57

36

5305670279

BOLT Was 1008707818 - A

37

5305670178

SEAT BOTTOM ASSY W/Ref 2, 17, 20, 42-47, 51 & 55

38

HOSE CLIP

39

5305670229

BUMPER CPL W/ Ref. 2, 37, 38, 49 & 51

40

5305670230

ROLLER

41

5305670184

STOP

42

5305670070

GAS STRUT W/ Ref. 21, 22, 44 & 51

43

5305670175

BEARING

44

PIN

45

BOLT Was 5305670176 - A

46

5305670062

TRACK ROLLER

47

BOLT Was 5305670177 - A

48

5305670182

RIVET

49

WASHER Was 5305670200 - A

50

5305670063

COVERING W/ Ref. 51

51

PLUG Was 5305655425 - A

52

5305670276

GAS STRUT CPL. W/Ref. 47, 49, 51, 58 & 61 - Was 5305670064 - A

53

RUBBER PAD Was 5305670179 - A

54

BOW Was 5305670180 - A

55

BOLT Was 1045707517 - A

56

5305670277

COMPRESSOR CPL. W/ Ref. 2, 20, 51, 53 - 55, 57, 61 - Was 5305670073 - A

57

5305670232

BINDER

58

BUSHING Was 5305670066 - A

59

5305670067

CABLE W/Ref. 20, 51 & 57

60

5305670068

HOSE ASSY W/Ref. 20, 51, 57, 58 & 61

61

HOSE CLIP Was 5305670069 - A

62

5305670181

COVER W/Ref. 48

63

5305670234

BOLT
