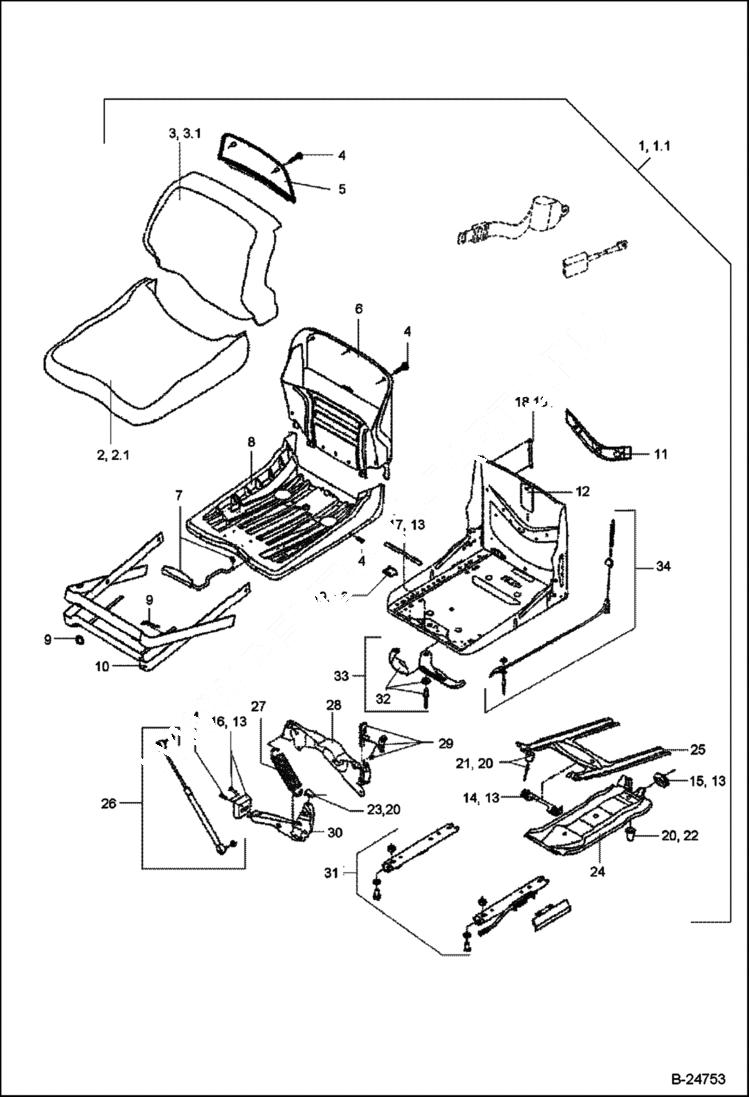

Запчасти Bobcat 442 OPERATORS SEAT MSG 20 MAIN FRAME

1

5305661700

OPERATORS SEAT Includes Ref. 2, 3 & 4-35

1

5305661690

DRIVERS SEAT CPL Includes Ref. 2, 3, & 4-35

2

5305670022

PAD Includes Ref. 4

2

5305670020

CUSHION SEAT Includes Ref. 4

3

5305670023

PAD Includes Ref. 5

3

5305670021

CUSHION BACK Includes Ref. 5

4

5305661608

SET, MOUNTING PART

5

5305661618

COVER Includes Ref. 4

6

5305661611

PLATE Includes Ref. 4

7

5305039166

CONTROL LEVER

8

5305661612

SEAT BRACKET Includes Ref. 4, 7, & 10

9

5305039168

REPAIR KIT

10

5305039169

COVER Includes Ref. 9

11

5305661613

COVER

12

5305661614

SEAT CONSOLE Includes Ref. 4, 11, 16-19, 33 & 34

13

5305661594

SEAL KIT Includes Ref. 14 - 19

14

ANGLE PLATE NSS - Order Ref. 13

15

PLATE NSS - Order Ref. 13

16

COVER NSS - Order Ref. 13

17

PIPE NSS - Order Ref. 13

18

CLIP NSS - Order Ref. 13

19

PLUG NSS - Order Ref. 13

20

5305039173

PLUG KIT Includes Ref. 21 - 23

21

BUFFER NSS - Order Ref. 20

22

BUFFER NSS - Order Ref. 20

23

PLATE NSS - Order Ref. 20

24

5305039174

SPRING SUSPENTION Includes Ref. 15, 17 & 22

25

5305039175

SPRING SUSPENTION Includes Ref. 14 & 21

26

5305661595

GAS FILLED DAMPER

27

5305039176

TENSION SPRING

28

5305039177

LEVER

29

5305661615

PART

30

5305039180

LEVER Includes Ref. 16 & 23

31

5305661691

SLIDING RAIL SET

32

5305661616

CONTROL LEVER

33

5305661617

CABLE PULL Includes Ref. 32

34

5305661619

WEIGHT INDICATOR
