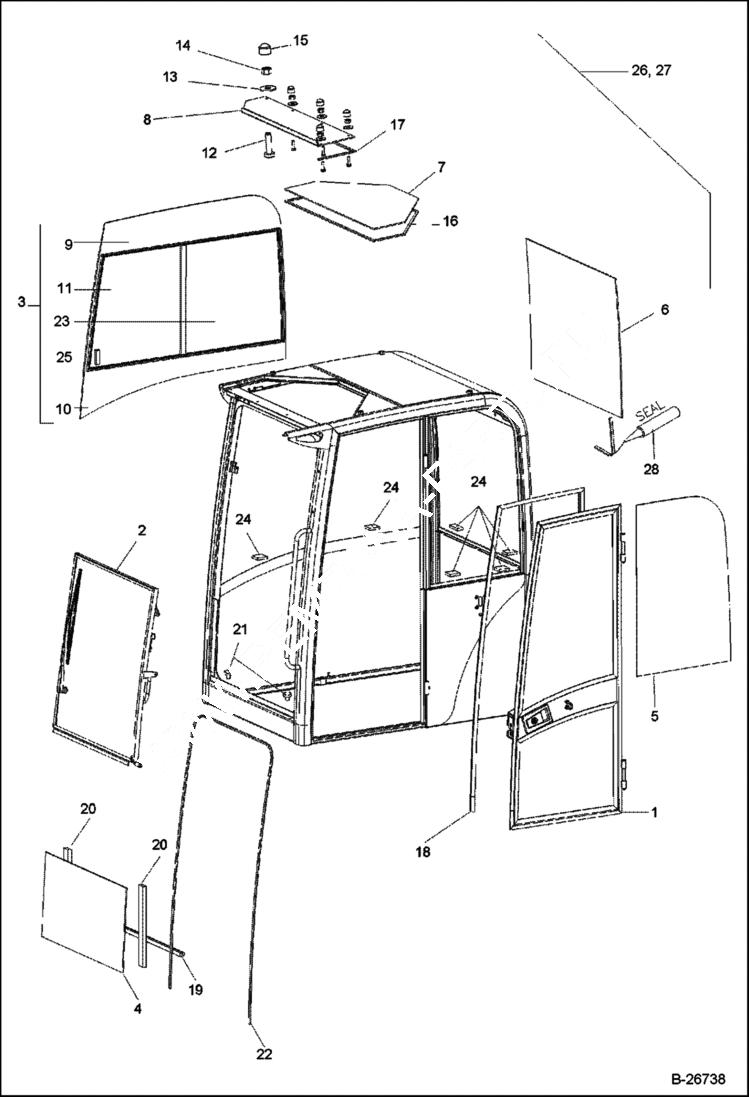

Запчасти Bobcat 442 OPERATORS CAB Glass - Cemented Panes Cab - 202.042.466 & Above MAIN FRAME

1

5388665149

DOOR CMPL 2.025

2

5388665197

ROLLER 2.024

3

5388665396

SLIDING PANE Includes Ref 9, 10, 11 & 23-25

4

5103660551

GLASS

5

5103660594

GLASS

6

5103661338

WINDOW, CAB REAR Was 5388665054 - A

7

5103661360

PANE Was 5388662921 - A

8

5388664045

PANE

9

5103661313

GLASS

10

5103661314

GLASS

11

5103661312

GLASS

12

5388662776

BOLT

13

5388662623

WASHER

14

5388665072

NUT

15

5388662926

CAP

16

5388662927

SEAL 10 x 5 x 2230

17

5388662928

SEAL 10 x 3 x 1100

18

5388662929

SEAL 3600 mm

19

5388662930

SEAL

20

5388662931

SEAL 20 x 15 x 470

21

5388661482

RUBBER BLOCK

22

5388665037

SEAL

23

5103661311

GLASS

24

5388665035

SUPPORT

25

5388665263

DETENT HANDLE

26

5388661141

OPERATOR'S CAB CPL. WHITE Standard

27

5388664165

CAB, ASSY WHITE white - Was 5388664155 - A

28

ADHESIVE NLA - Was MCS008042A - A
