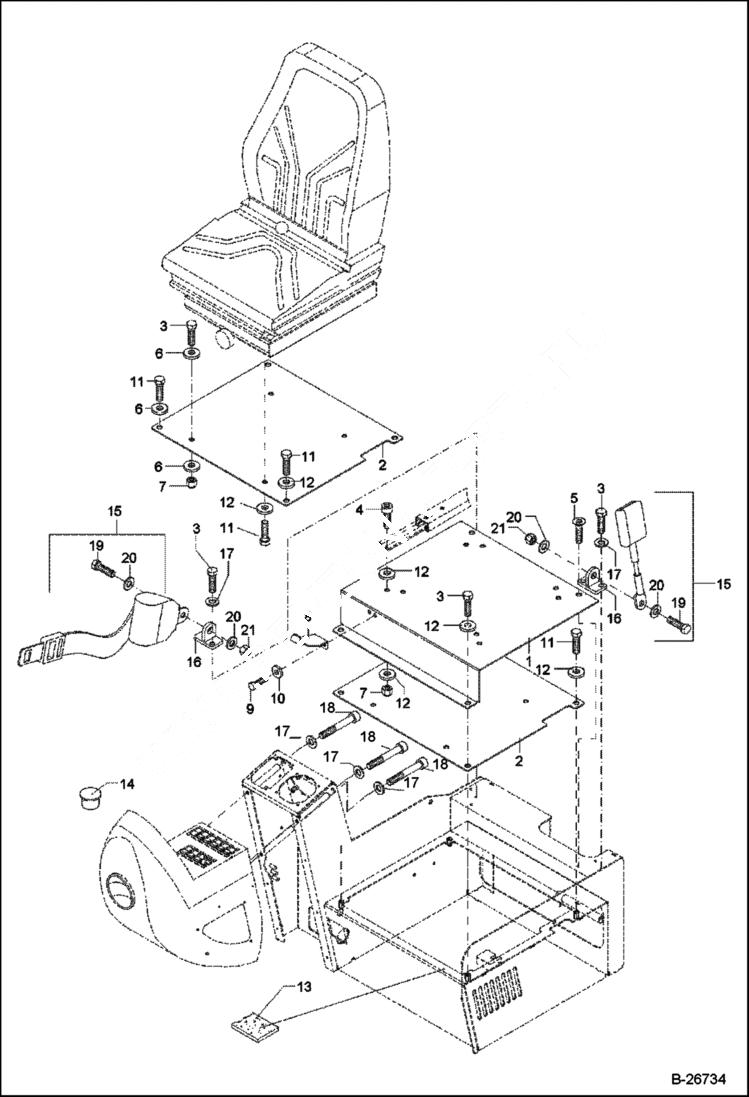

Запчасти Bobcat 442 SEAT CONSOLE 5289 11380 & Above MAIN FRAME

1

6188827095

SEAT CONSOLE

2

6234116005

SUPPORT SEAT

3

1008707318

BOLT

4

1045707018

BOLT

5

1062707018

BOLT

6

1343707057

WASHER

7

1212251011

NUT

8

6188915005

BRACKET

9

1008707912

BOLT

10

1343707055

WASHER

11

1008707018

BOLT

12

1307707018

WASHER

13

5354640125

NEOPRENE STRIP

14

1980930494

PLUG

15

5305639665

SEAT BELT ASSY Includes Ref 19 & 20

16

6190267005

MOUNT

17

1290707018

WASHER

18

1045707121

BOLT

19

BOLT NSS - Order Ref. 15

20

WASHER NSS - Order Ref. 15

21

NUT NSS - Order Ref. 15
