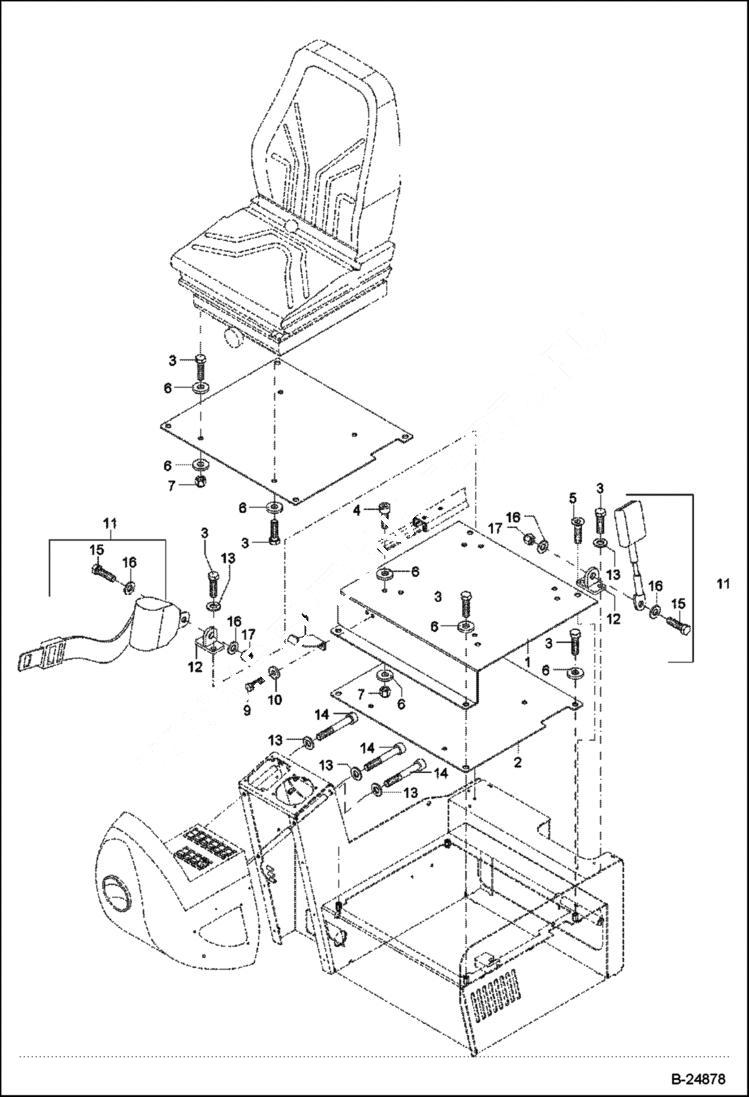

Запчасти Bobcat 442 SEAT CONSOLE 5289 11379 & Below MAIN FRAME

1

6234118005

BRACKET SEAT

2

6234116005

SUPPORT SEAT

3

1008707318

BOLT

4

1045707018

BOLT

5

1062707018

BOLT

6

1343707057

WASHER

7

1212251011

NUT

8

6188915005

BRACKET

9

1008707912

BOLT

10

1343707055

WASHER

11

5305639665

SEAT BELT ASSY W/Ref. 15 - 17

12

6190267005

MOUNT

13

1290707018

WASHER

14

1045707121

BOLT

15

BOLT NSS - Order Ref. 11

16

WASHER NSS - Order Ref. 11

17

NUT NSS - Order Ref. 11
