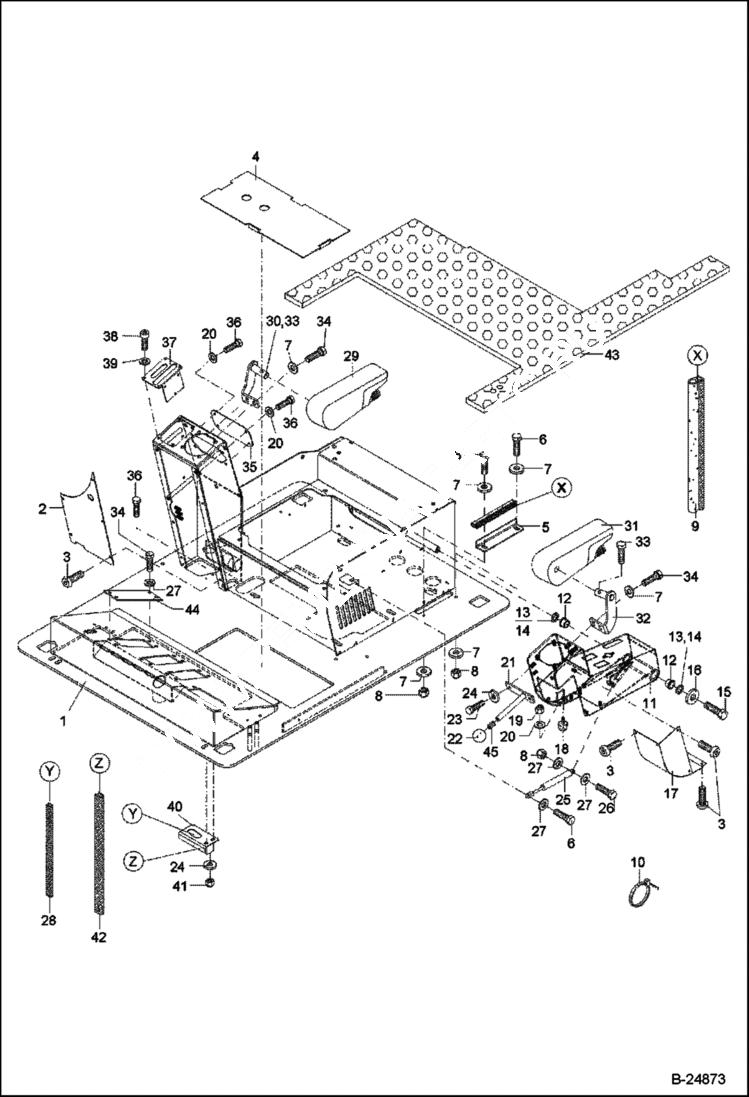

Запчасти Bobcat 442 FLOOR FRAME 5289 11379 & Below MAIN FRAME

1

6234026002

FLOOR FRAME

2

6190026030

COVER

3

1125907909

BOLT

4

6190026045

COVER

5

0202508020

BRACKET SUPPORT

6

1008707618

BOLT

7

1343707057

WASHER

8

1212251011

NUT

9

7023313

SEALING SECTION - A

10

5653093560

BINDER

11

ARM REST NLA - Left - Was 6234026020 - A

12

0191114138

BUSHING

13

1309412411

SHIM

14

1309412124

SHIM

15

1008707423

BOLT

16

1307707020

WASHER

17

6190026029

COVER

18

5101290955

STOP

19

1212251009

NUT

20

1290707014

WASHER

21

6209026060

ROD W/Ref. 22 & 45

22

1541930627

BALL KNOB Was 1541930726 - A

23

1008707513

BOLT

24

1343707055

WASHER

25

5696636551

GAS PRESSURE SPR.

26

1008707019

BOLT

27

1290707018

WASHER

28

5354600010

RUBBER PROFILE

29

5305661702

ARMREST, RIGHT

30

0190026050

BRACKET Was 6190026050 - A

31

5305661701

ARMREST, LEFT

32

0190026054

BRACKET Was 6190026054 - A

33

5305661749

BOLT

34

1008707318

BOLT

35

6190026058

COVER

36

1008707912

BOLT

37

6190026040

ANGLE PLATE

38

1045707909

BOLT

39

1290707012

WASHER

40

6190026057

COVER

41

1210707009

NUT

42

5354600000

EDGE PROTECTION Bulk - Sold per meter

43

0190111005

FLOOR MAT

44

6154506022

COVER

45

5666660925

SLEEVE
