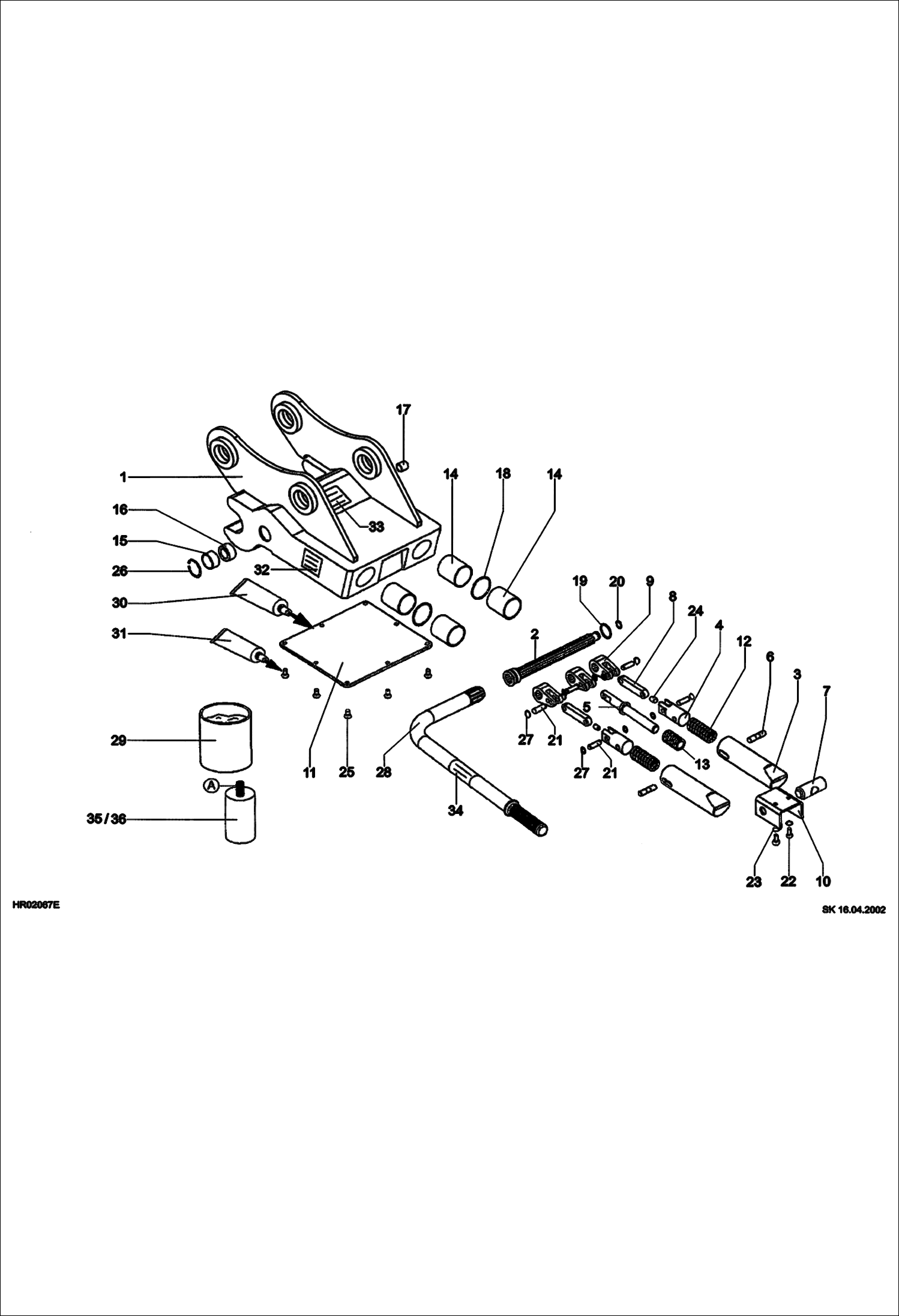

Запчасти Bobcat 442 QUICK MOUNT HITCH ACCESSORIES & OPTIONS

1

6190130000

QUICK MOUNT HITCH

2

5455660482

SHAFT

3

5455660483

PIN

4

5455660484

PIN

5

5455660485

PIN

6

5455660486

PIN

7

5455660487

PIN

8

5455660488

REVERSING LEVER

9

5455660489

CATCH

10

5455660490

BRACKET

11

COVER NSS

12

5455660491

SPRING

13

5455660492

SPRING

14

5455660493

BUSHING

15

5455660494

BUSHING

16

5455660495

BUSHING

17

5455660496

BUSHING

18

5455660497

O-RING

19

5455660498

O-RING

20

5455660499

O-RING

21

5455660500

PIN

22

5455660501

BOLT

23

5455660502

SPRING WASHER

24

5455660503

STUD

25

BOLT NSS

26

5455660504

CIRCLIP

27

5455660505

CIRCLIP

28

5455660506

TUBUL BOX WRENCH
