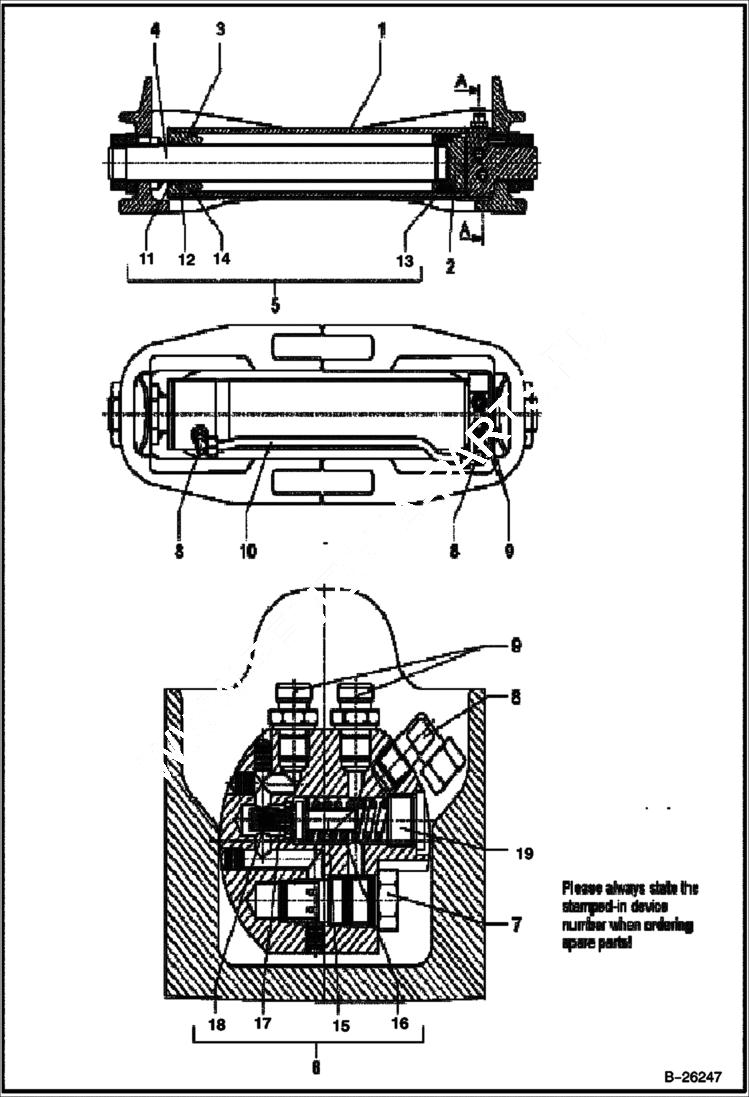

Запчасти Bobcat 442 HYDRAULIC RAM With Non Return Valve ACCESSORIES & OPTIONS

1

5440000089

CASE

2

5440000090

PISTON

3

5440000075

HEAD

4

5440000076

ROD

5

5440000077

SEAL KIT W/Ref. 11-14

6

5440000091

VALVE KIT W/Ref. 15-18

7

5440000094

NON RETURN VALVE

8

5440000086

ELBOW

9

5440000087

SCREW FITTING

10

5440000088

TUBELINE

11

WIPING RING NSS - Order Ref. 5

12

PISTON ROD SEAL NSS - Order Ref. 5

13

O-RING NSS - Order Ref. 5

14

SEAL NSS - Order Ref. 5

15

BOLT NSS - Order Ref. 6

16

SPRING NSS - Order Ref. 6

17

PISTON NSS - Order Ref. 6

18

PRESSURE SPRING NSS - Order Ref. 6

19

PLUG NSS - Order Ref. 6
