BUCKET Direct Mounted - With Scraper 450mm

Запчасти Bobcat 442 BUCKET Direct Mounted - With Scraper 450mm ACCESSORIES & OPTIONS

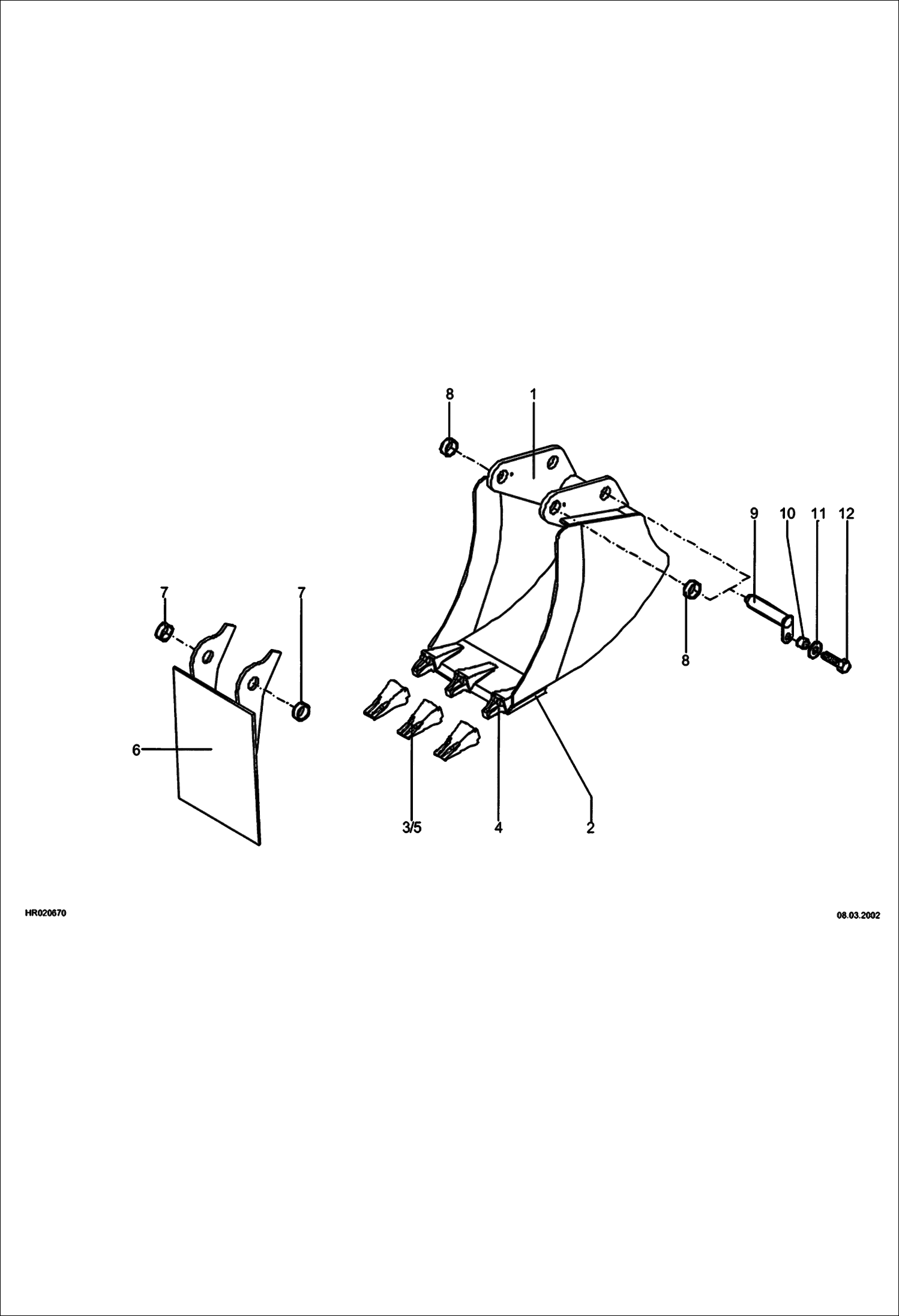

Схема запчастей Bobcat 442 - BUCKET Direct Mounted - With Scraper 450mm ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BUCKET NLA - Was 6190281000 - A

2

5018001044

BLADE W/Refs. 3-5

3

5455660445

TOOTH, BUCKET

4

5455660446

BRACKET

5

5455660447

LOCK

6

5018001052

EJECTOR

7

5018001053

BUSHING

8

5018001054

BUSHING

9

5018001055

PIN

10

5018001056

BUSHING

11

5018001059

WASHER

12

1008707829

BOLT
