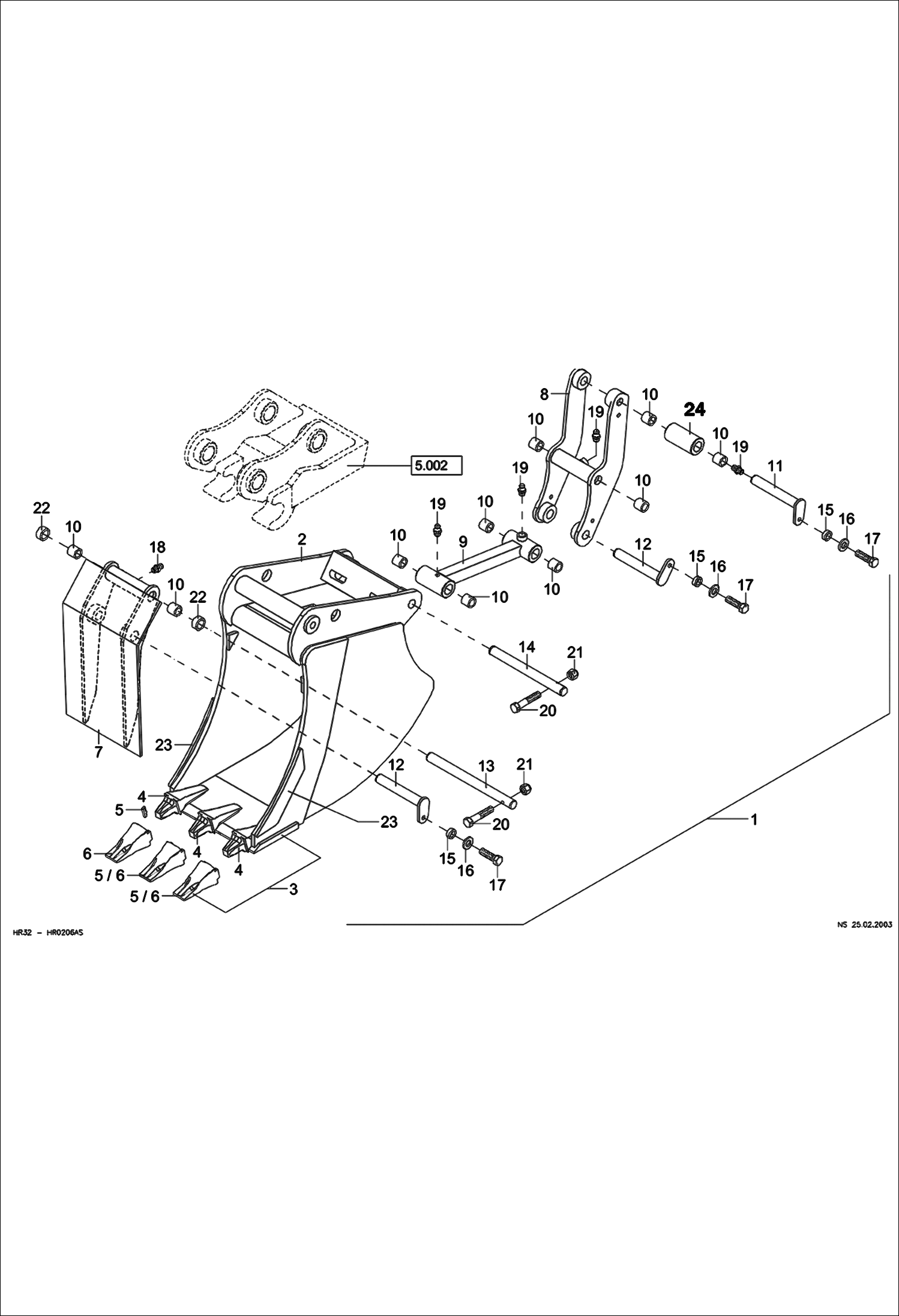

Запчасти Bobcat 442 BUCKET Quick Release With Scraper 400mm ACCESSORIES & OPTIONS

1

BUCKET CPL NLA - 400mm - W/Ref. 2-24 - Was 6190290700 - A

2

BUCKET NLA - Was 5018001074 - A

3

5018001075

CUTTING EDGE 400 MM

4

5455660446

BRACKET

5

5455660447

LOCK

6

5455660445

TOOTH, BUCKET

7

5018001079

EJECTOR 400 MM

8

5018001080

BUCKET LINK

9

5018001081

ROD

10

5018001082

BUSHING

11

5018001083

PIN

12

5018001083

PIN

13

5018001084

PIN

14

5018001085

PIN

15

5018001086

BUSHING

16

1290707020

WASHER

17

1008707923

BOLT

18

1609010008

GREASE ZERK

19

1607010008

GREASE ZERK

20

1007707919

BOLT

21

1212251011

NUT

22

5018001090

BUSHING

23

5018001089

CUTTING EDGE

24

5018001088

BUSHING
