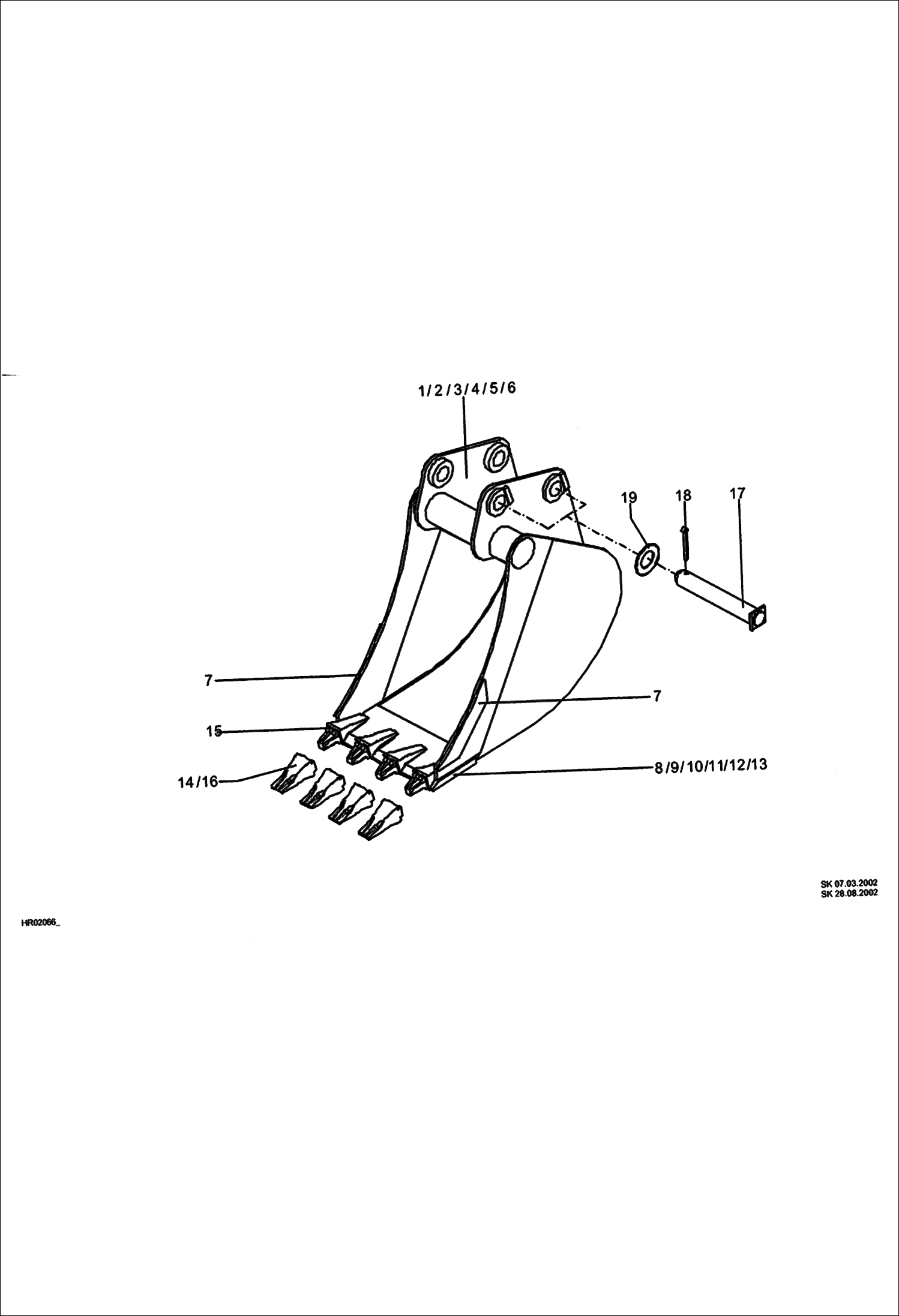

Запчасти Bobcat 442 BUCKET Direct Mounted 300, 450, 500, 600, 800, 900 mm ACCESSORIES & OPTIONS

1

BUCKET NLA - 300mm - Was 6190279500 - A

2

BUCKET NLA - 450mm - Was 6190280000 - A

3

BUCKET NLA - 500mm - Was 6190281500 - A

4

BUCKET NLA - 600mm - Was 6190282000 - A

5

BUCKET NLA - 800mm - Was 6190284000 - A

6

BUCKET NLA - 900mm - Was 6190285500 - A

7

5018001050

SIDE BLADE right

8

5018001062

BLADE 300mm - W/Refs. 14, 15 & 16

9

5018001044

BLADE 450mm - W/Refs. 14, 15 & 16

10

5018001063

BLADE 500mm - W/Refs. 14, 15 & 16

11

5018001045

BLADE 600mm - W/Refs. 14, 15 & 16

12

5018001046

BLADE 800mm - W/Refs. 14, 15 & 16

13

5018001064

BLADE 900mm - W/Refs. 14, 15 & 16

14

5455660445

TOOTH, BUCKET

15

5455660446

BRACKET

16

5455660447

LOCK

17

0211005045

PIN Was 6211005045 - A

18

1395707642

COTTER PIN

19

1309412430

WASHER
