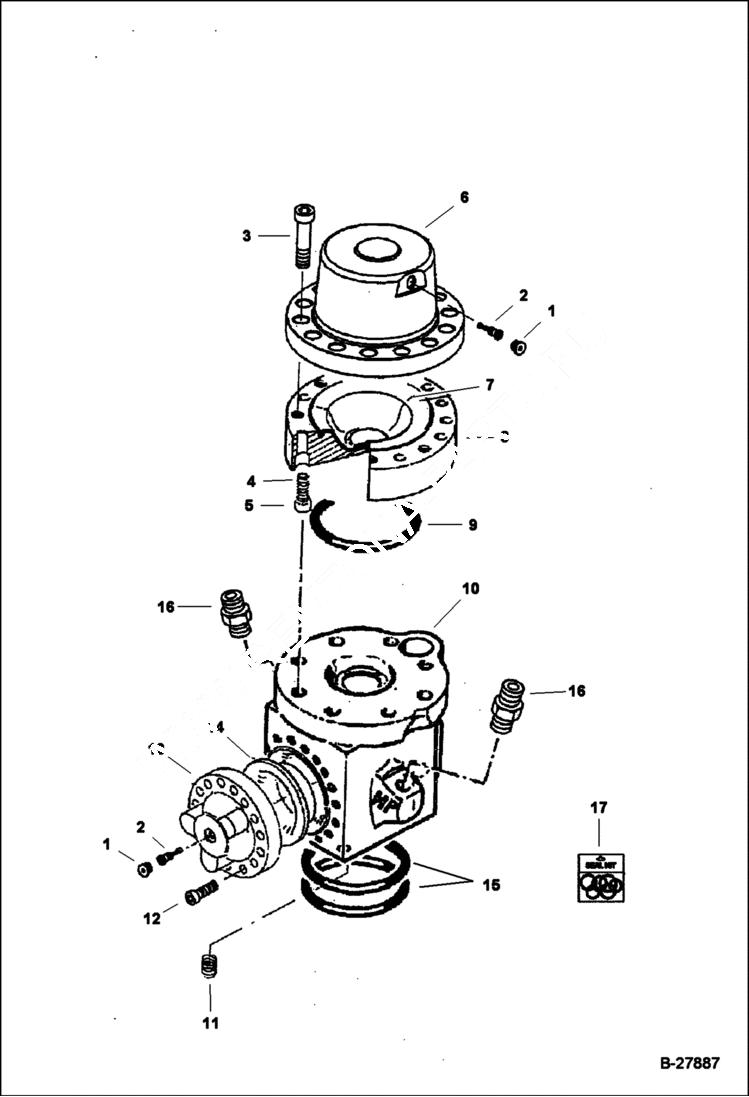

Запчасти Bobcat 442 BREAKER B1400 ACCESSORIES & OPTIONS

1

6676691

PLUG

2

6679894

VALVE

3

6680192

SCREW

4

6680193

SCREW

5

6680194

SCREW

6

6682443

FLANGE UPPER upper

7

6682443

FLANGE UPPER

8

6680196

FLANGE LOWER lower

9

O-RING NSS - Order Ref. 17

10

6686966

HOUSING W/Ref. 11 - Was 6682445 - A

11

6680198

INSERT THREADED

12

6676694

BOLT

13

6682446

FLANGE UPPER

14

6686965

DIAPHRAGM Was 6682447 - A

15

6680201

FLANGE UPPER Order Ref. 17

16

6682448

ADAPTER

17

6682450

SEAL KIT See Illustration BREAKER/ B21488 See Illustration BREAKER/ B27887 - Ref. 9 & 15, & Ref. 4, 8, 19, 20 & 21 - Was 6680234 - A
