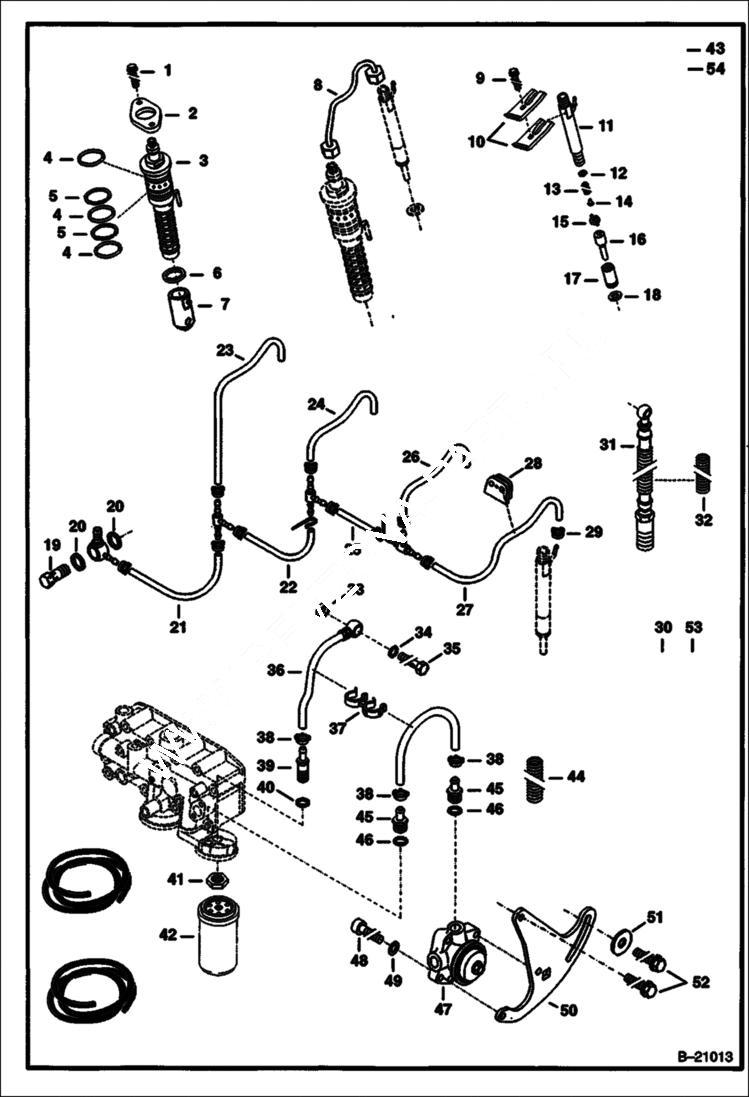

Запчасти Bobcat 442 FUEL INJECTION SYSTEM POWER UNIT

1

6681187

SCREW COLLAR

2

6681186

FLANGE

3

6681216

PUMP FUEL INJ W/Ref. 4 & 5

4

6681217

SEAL

5

6681218

SHIM back-up

6

6681188

SHIM 1,20 mm

6

6681189

SHIM 1,30 mm

6

6681190

SHIM 1,40 mm

6

6681191

SHIM 1,50 mm

6

6681192

SHIM 1,60 mm

6

6681193

SHIM 1,70 mm

6

6681194

SHIM 1,80 mm

6

6681195

SHIM 1,90 mm

6

6681196

SHIM 2,0 mm

6

6681197

SHIM 2,10 mm

6

6681198

SHIM 2,20 mm

6

6681199

SHIM 2,30 mm

6

6681200

SHIM 2,40 mm

6

6681201

SHIM 2,50 mm

6

6681202

SHIM 2,60 mm

6

6681203

SHIM 2,70 mm

6

6681204

SHIM 2,80 mm

6

6681205

SHIM 2,90 mm

6

6681206

SHIM 3,00 mm

6

6681207

SHIM 3,10 mm

6

6681208

SHIM 3,20 mm

6

6681209

SHIM 3,30 mm

6

6681210

SHIM 3,40 mm

6

6681211

SHIM 3,50 mm

6

6681212

SHIM 3,60 mm

6

6681213

SHIM 1,00 mm

6

6681214

SHIM 1,10 mm

6

6681215

SHIM 3,70 mm

7

6681185

TAPPET ROLLER

8

6681267

PIPE FUEL

9

6681220

BOLT TORX

10

6681219

HOLDER

11

6681221

FUEL INJECTOR W/Refs. 12-17

12

6681222

SHIM

12

6681228

SHIM 1,06mm

12

6681229

SHIM 1,10mm

12

6681230

SHIM 1,15mm

12

6681231

SHIM 1,20mm

12

6681232

SHIM 1,25mm

12

6681233

SHIM 1,30mm

12

6681234

SHIM 1,35mm

12

6681235

SHIM 1,40mm

12

6681236

SHIM 1,45mm

12

6681237

SHIM 1,50mm

12

6681238

SHIM 1,55mm

12

6681239

SHIM 1,60mm

12

6681240

SHIM 1,65mm

12

6681241

SHIM 1,70mm

12

6681242

SHIM 1,75mm

12

6681243

SHIM 1,80mm

12

6681244

SHIM 1,85mm

12

6681245

SHIM 1,90mm

12

6681246

SHIM 1,95mm

12

6681247

SHIM 2,00mm

13

6681223

SPRING COMPR

14

6681224

BOLT

15

6681225

WASHER

16

6681226

NOZZLE ELEMENT

17

6681227

NUT CLAMPING

18

6666492

SEAL RING

19

6681265

PRESSURESTAT

20

6681092

SEAL

21

HOSE NLA - Order Ref. 30

22

HOSE NLA - Order Ref. 30

23

HOSE NLA - Order Ref. 30

24

HOSE NLA - Order Ref. 30

25

HOSE NLA

26

HOSE NLA - Order Ref. 30

27

HOSE NLA - Order Ref. 30

28

6681266

SEAL RUBBER

29

6673160

CLAMP

30

6681264

TUBE OVERFLOW

31

FUEL LINE W/Ref. 32 - Order 6681256 - Was 6681268 - A

32

TUBING NLA - Order Ref. 53

33

6681258

SEAL

34

6676172

WASHER

35

6681257

SCREW HOLLOW

36

6681256

FUEL LINE

37

6681262

HOSE RETAINER

38

6681254

HOSE CLIP

39

6681260

HOSE KNIPPLE

40

6681259

SEAL

41

6681261

NUT

42

5411656567

FUEL FILTER

43

6681253

HOSE

44

TUBING NLA - Ref. 53

45

6681255

HOSE KNIPPLE

46

6676172

WASHER

47

6681250

FUEL PUMP

48

6681252

SCREW

49

9EM80

WSHR PLTE

50

6681251

BRACKET

51

6681249

WASHER

52

6681248

BOLT

53

6681263

TUBE CORRUGATED bulk - Sold Per Foot

54

6673160

CLAMP
