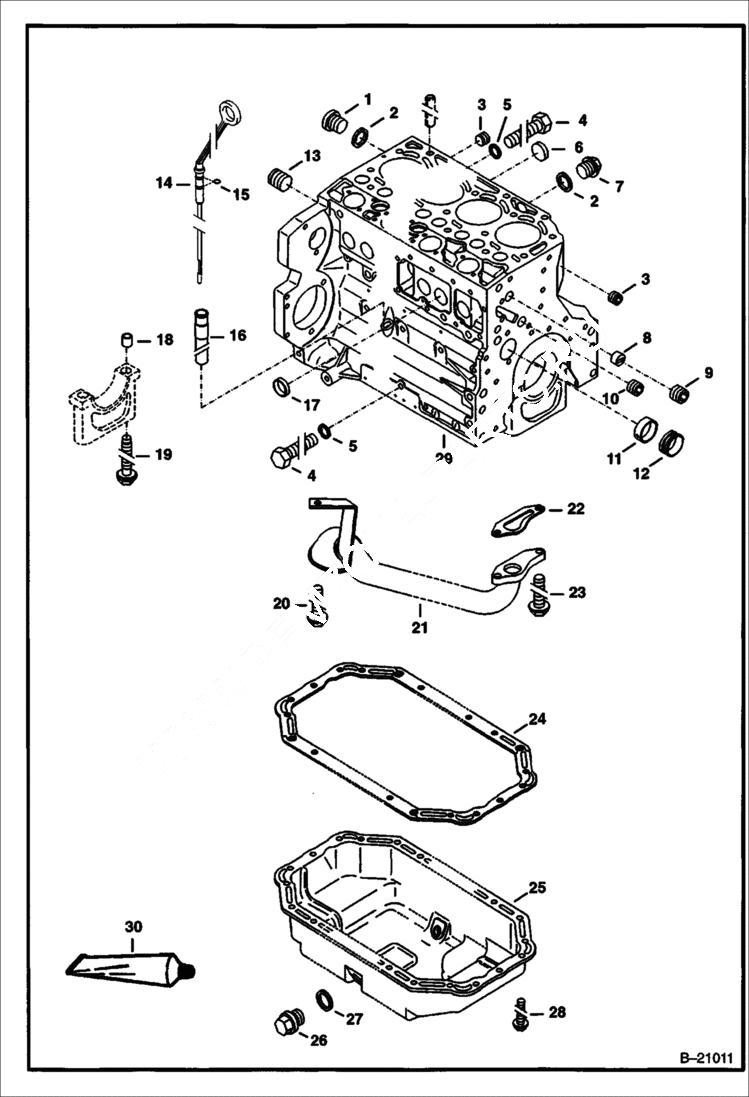

Запчасти Bobcat 442 CRANKCASE POWER UNIT

1

6681091

PLUG

2

6681092

SEAL

3

6672874

PLUG

4

6681122

BOLT

5

1FM80115

WASHER

6

6681097

COVER

7

6681098

PLUG

8

6681099

SLEEVE GUIDE

9

6672873

PLUG

10

6681093

PLUG

11

6681095

BUSHING

12

6681094

BUSHING

13

6681100

PLUG

14

5411657888

OIL DIPSTICK W/Ref. 15 - Was 5411656389 - A

15

1970956116

O-RING

16

6681085

TUBE GUIDE

17

6681096

COVER

18

6681090

BUSHING

19

6681089

BOLT

20

6681183

BOLT

21

6681181

OIL SUCTION PIPE

22

6681184

GASKET

23

6681182

BOLT

24

5411656564

OIL PAN GASEKT

25

5411657024

OIL PAN

26

6666399

PLUG

27

6666394

SEAL RING

28

6681101

BOLT

29

CRANKCASE W/Refs. 1-3, 6-13 & 17-19

30

6632823

GASKET liquid
