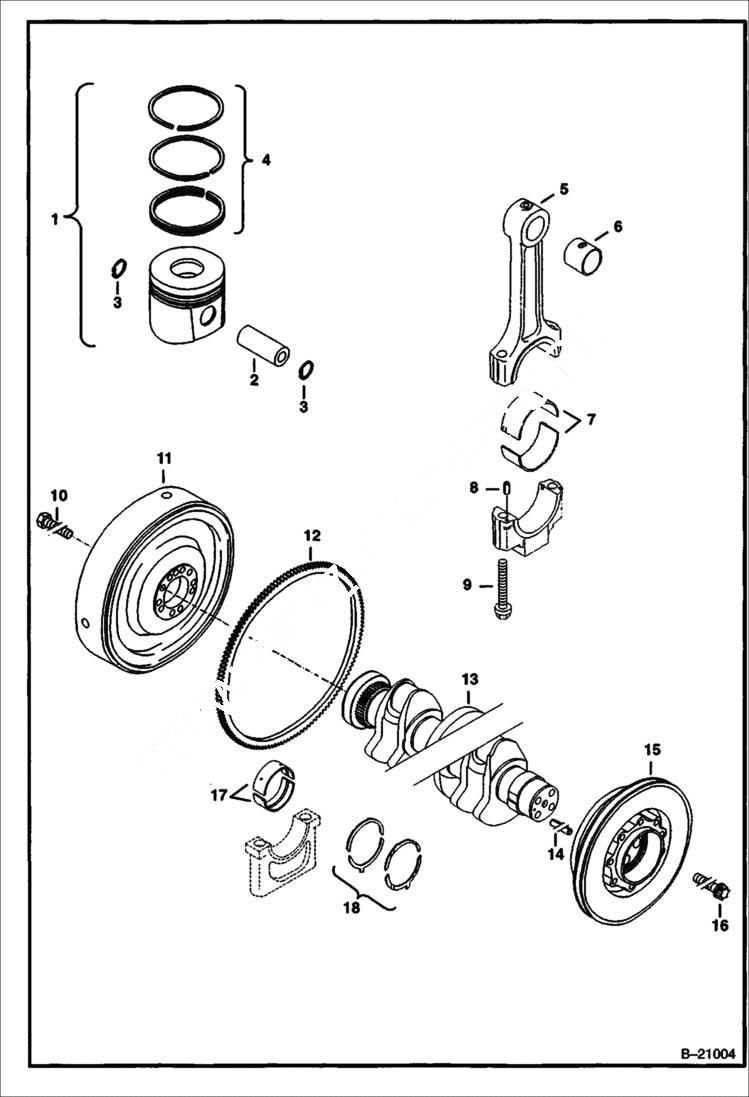

Запчасти Bobcat 442 PISTON & CRANKSHAFT POWER UNIT

1

6681121

PISTON 3.70'' (94mm)

1

6681126

PISTON 3.72 (94,5mm)

2

6681123

PIN

3

6681124

CLIP

4

6681125

RING SET 3.70'' (94mm)

4

6681127

RING SET 3.72' (94,5)

5

6681117

ROD CONNECTING W/Ref. 6, 8 & 9

6

6681118

BUSHING

7

6681108

BEARING 2.28'' (58mm)

7

6681111

BEARING 2.27'' (57,75mm)

8

6681120

PIN

9

6681119

BOLT

10

6681104

BOLT

11

6681102

FLYWHEEL W/Ref. 12

12

6681103

GEAR RIM

13

6681105

CRANKSHAFT

14

6681116

PIN

15

6681114

PULLEY v-grooved

16

6681115

BOLT TORX

17

6681106

BEARING MAIN 2.91'' (74mm)

17

6681109

BEARING MAIN 2.90'' (73,75mm)

18

6681107

WASHER THRUST .095'' (2,4mm)

18

6681110

WASHER THRUST .102'' (2,6mm)
