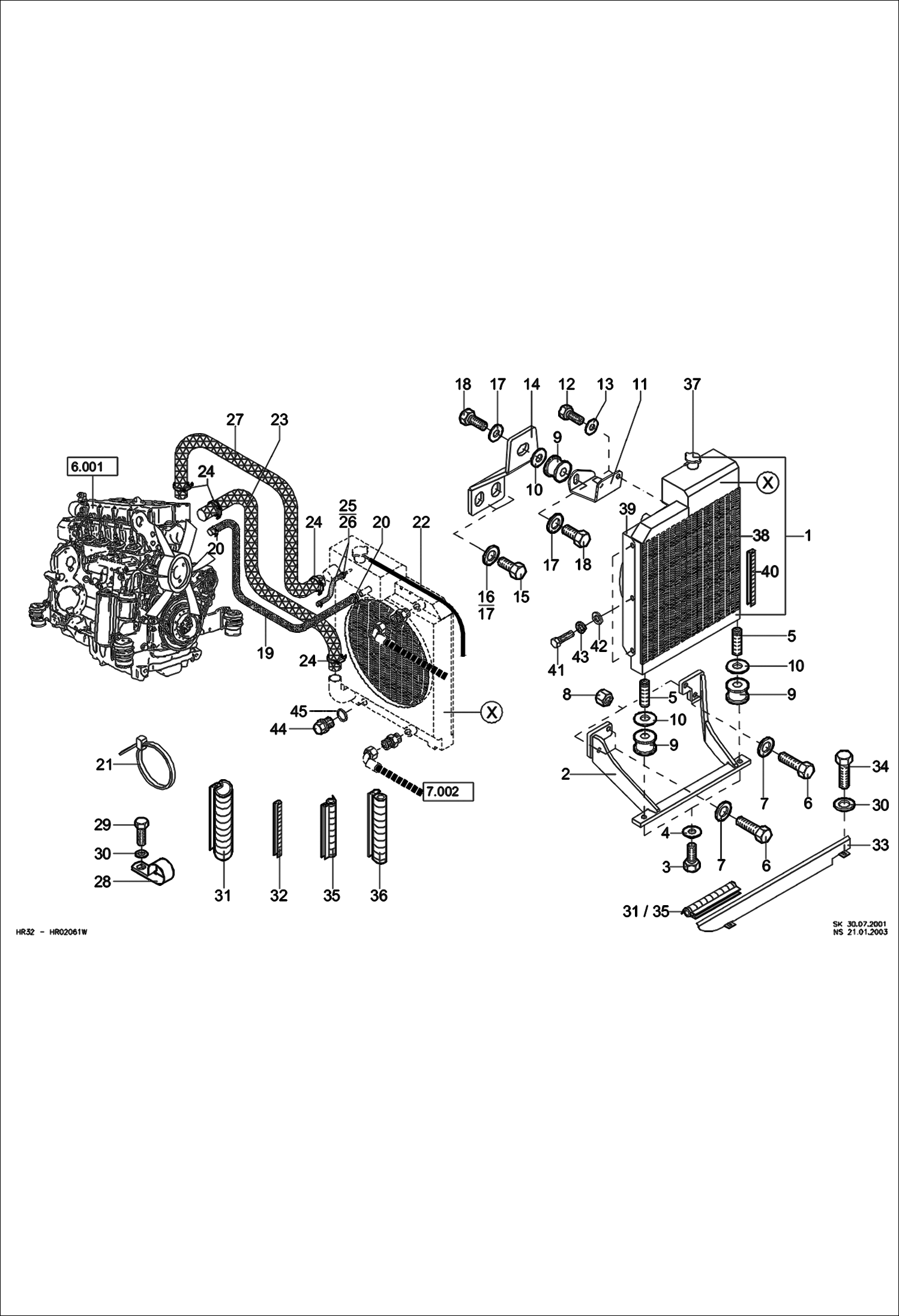

Запчасти Bobcat 442 RADIATOR - OIL WATER POWER UNIT

1

5010660992

OIL WATER COOLER W/Refs. 37-45

2

6190015010

COOLER BRACKET

3

1008707923

BOLT

4

1307707020

WASHER

5

1133341623

STUD

6

1008707630

BOLT

7

1343707061

WASHER

8

1212251014

NUT

9

BEARING NLA - Was 5101290966 - A

10

1299707020

WASHER

11

0202515042

PLATE Was 6202515042 - A

12

1008707817

BOLT

13

1343707057

WASHER

14

BRACKET NLA - Was 6190015120 - A

15

1008707124

BOLT

16

1290707020

WASHER

17

1343707059

WASHER

18

1008707423

BOLT

19

0190015050

HOSE

20

5660199200

HOSE CLIP

21

5350650280

BINDER

22

0202515049

HOSE ASSEMBLY CPL.

23

0190015051

HOSE

24

5660095305

HOSE CLIP

25

0202515044

WATER HOSE

26

5603320320

HOSE CLIP

27

0202515050

ELBOW

28

5000210460

HOSE CLIP

29

1008707318

BOLT

30

1343707057

WASHER

31

7025098

SEAL, BULK/MTR - A

32

5354600010

RUBBER PROFILE

33

6190015015

COVER PLATE

34

1008707517

BOLT

35

5354255965

SEALING SECTION

36

5354660507

SEALING SECTION

37

5010657415

CAP

38

5010663035

COOLER

39

5010663036

VENTILATOR COVER

40

5010663037

SEAL

41

1008707018

BOLT

42

1307707018

WASHER

43

1321707018

SPRING WASHER

44

1150201615

PLUG

45

1636700432

SEAL RING
