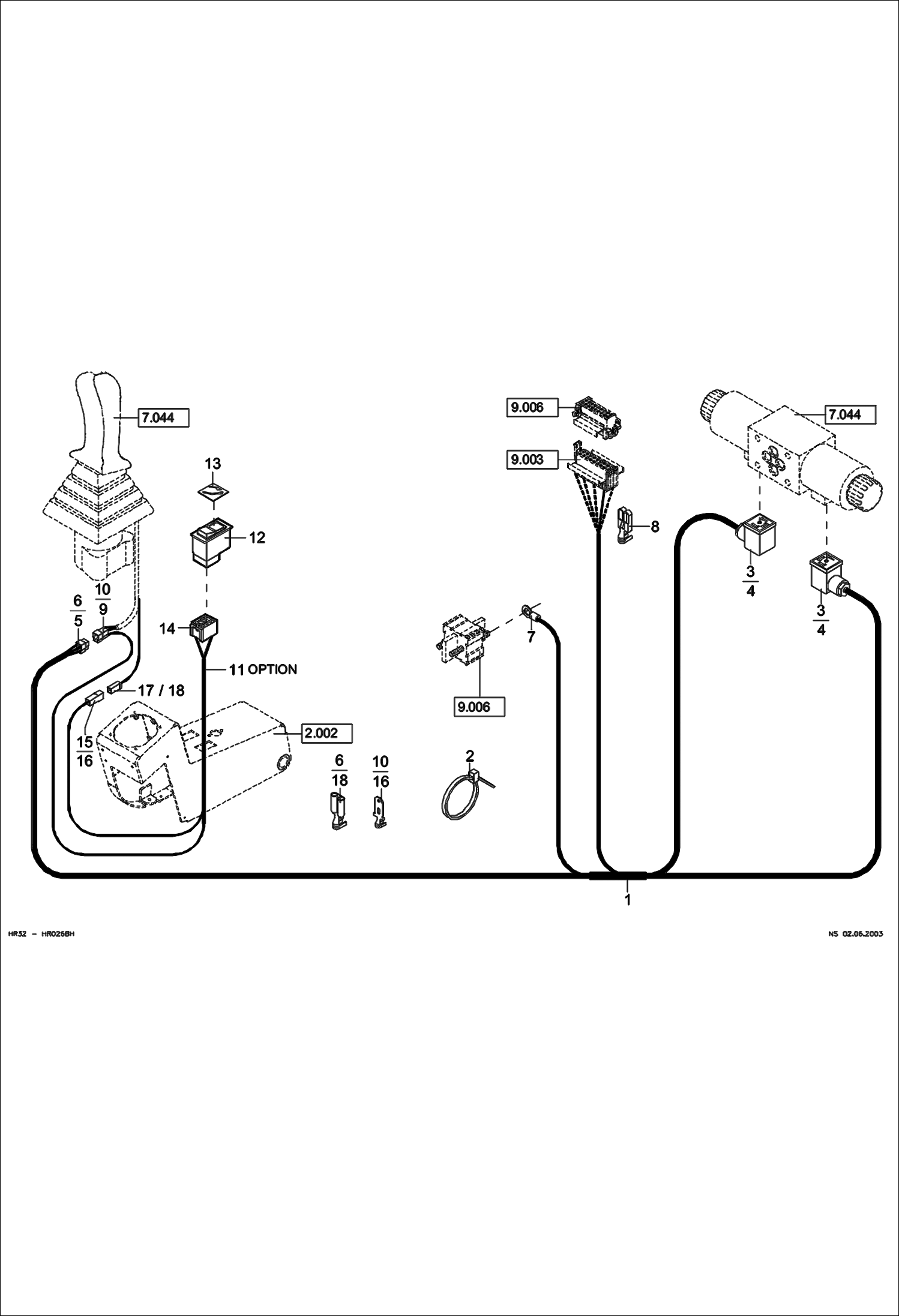

Запчасти Bobcat 442 ELECTRIC INSTALLATION Additional Circuit Control Unit ELECTRICAL SYSTEM

1

0190303020

WIRE HARNESS W/Ref. 3-8

2

5350650280

BINDER

3

5552659550

BOX

4

5552659513

SEAL

5

5350249541

HOUSING

6

5350246805

TERMINAL FEMALE

7

5350249597

CABLE CONNECTOR

8

5350249552

CONNECTOR

9

5350249542

PLUG

10

5350247311

TERMINAL MALE

11

0190303021

WIRE HARNESS Option - W/Ref. 12-18

12

5050651331

INTERRUPTER SWITCH

13

5358650248

DECAL

14

5050650225

HOUSING

15

5350249542

PLUG

16

5350247311

TERMINAL MALE

17

5350249541

HOUSING

18

5350246805

TERMINAL FEMALE
