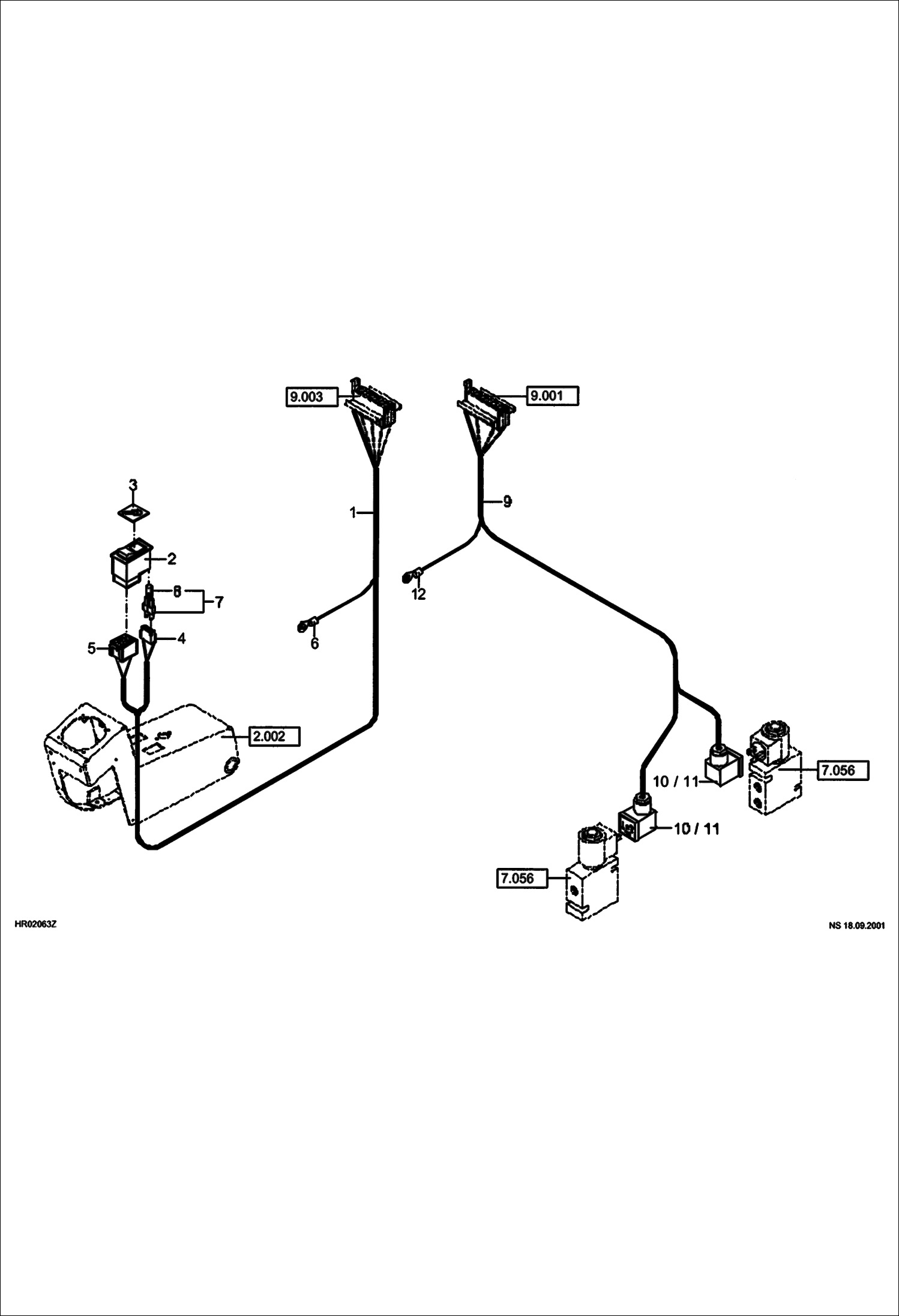

Запчасти Bobcat 442 ELECTRIC INSTALLATION Changeover ISO/SAE ELECTRICAL SYSTEM

1

0190260010

WIRE HARNESS W/Ref. 2-6

2

5050651362

SWITCH W/Ref. 7

3

5358650297

SYMBOL

4

5050650231

HOUSING

5

5050650225

HOUSING

6

5350246610

CABLE CONNECTOR

7

5050650226

LAMP W/Ref. 8

8

1813000021

ROUND BULB

9

0190260020

WIRE HARNESS W/Ref. 10-13

10

5552659550

BOX

11

5552659513

SEAL

12

5350246610

CABLE CONNECTOR
