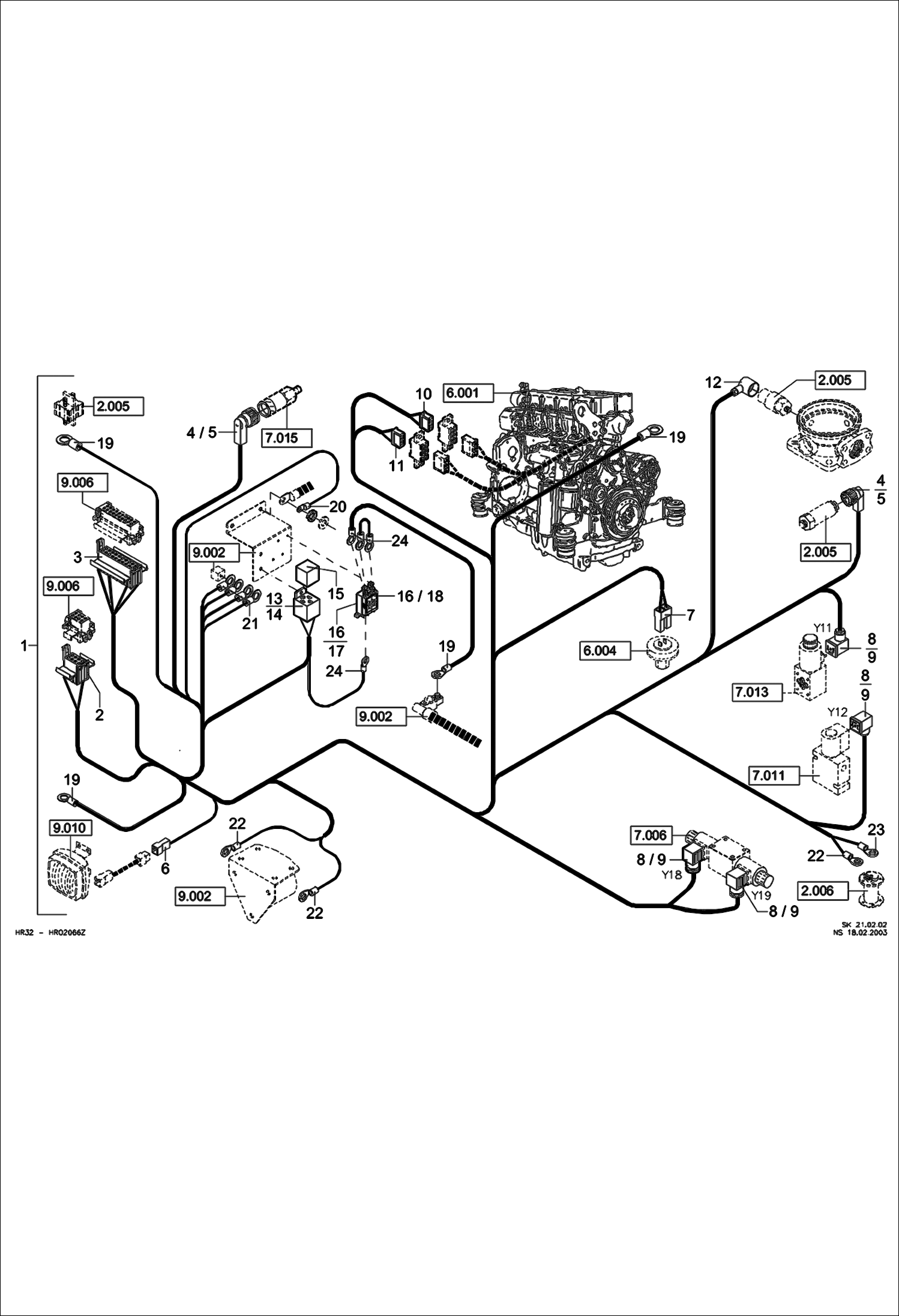

Запчасти Bobcat 442 ELECTRIC INSTALLATION ELECTRICAL SYSTEM

1

0190007150

WIRE HARNESS W/Ref. 2-24

2

5350249684

CONNECTOR

3

5350249687

CONNECTOR

4

5350249655

SOCKET HOUSING

5

5350249661

CAP 90GRAD

6

5350249513

PLUG

7

5350249576

HOUSING

8

5552659550

BOX

9

5552659513

SEAL

10

5350650205

SOCKET yellow

11

5350650207

SOCKET nature

12

5380660826

PLUG CONNECTION

13

5050650464

POWER RELAY LINE

14

5050650491

BRACKET

15

5050247810

RELAY

16

5050650450

HOLDER

17

5050650487

BLADE TYPE FUSE

18

5050165810

FUSE(30AMP)

19

5350249600

CABLE CONNECTOR

20

5350249597

CABLE CONNECTOR

21

5350246610

CABLE CONNECTOR

22

5350241104

CABLE CONNECTOR

23

5350246820

CABLE CONNECTOR

24

5350249590

CABLE CONNECTOR
