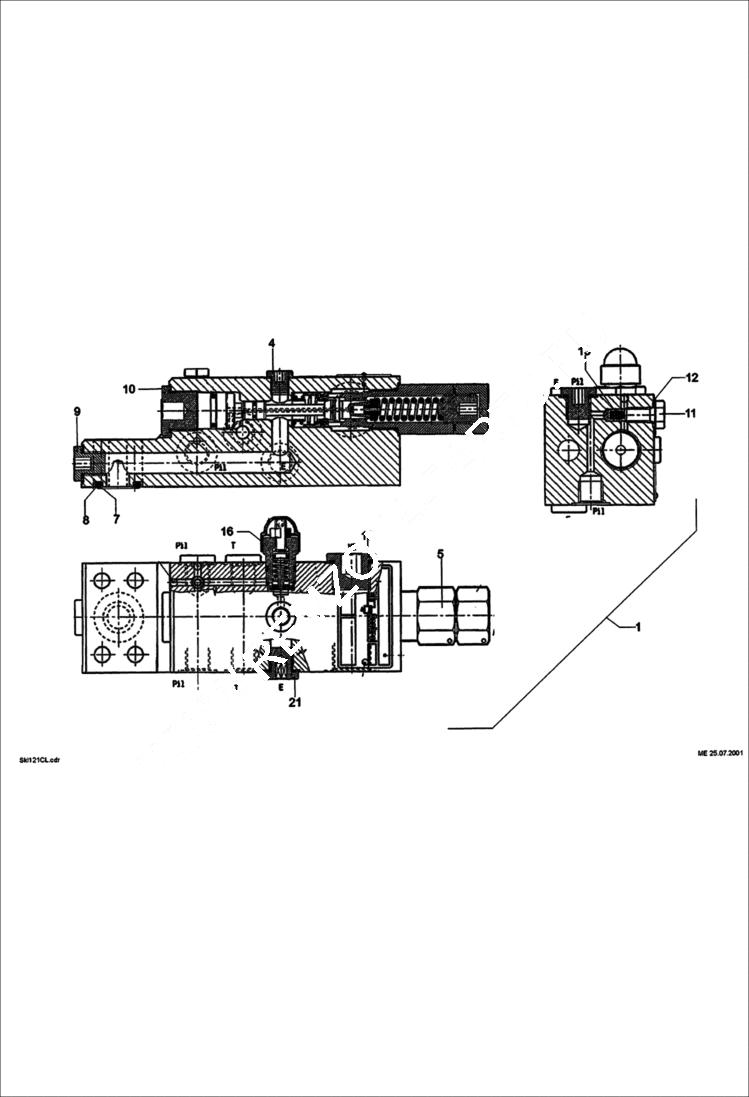

Запчасти Bobcat 442 LOAD CHECK VALVE HYDRAULIC SYSTEM

1

5167659758

LOAD CHECK VALVE

4

PLUG NLA - Was 5167660060 - A

5

PRESSURE RELIEF VALVE NLA - Was 5167660060

7

O-RING NLA - Was 5167660058 - A

8

5167660059

BACKUP WASHER

9

5167660052

PLUG

10

5167660053

PLUG

11

1008707817

BOLT

12

SEAL RING NLA - Was 1636815227 - A

13

SPRING NLA - Was 5167660054 - A

16

ANTI-CAVITY VALVE NLA - Was 5167660055 - A

18

PLUG NLA - Was 5167660056 - A

21

PLUG NLA - Was 5167660057 - A
