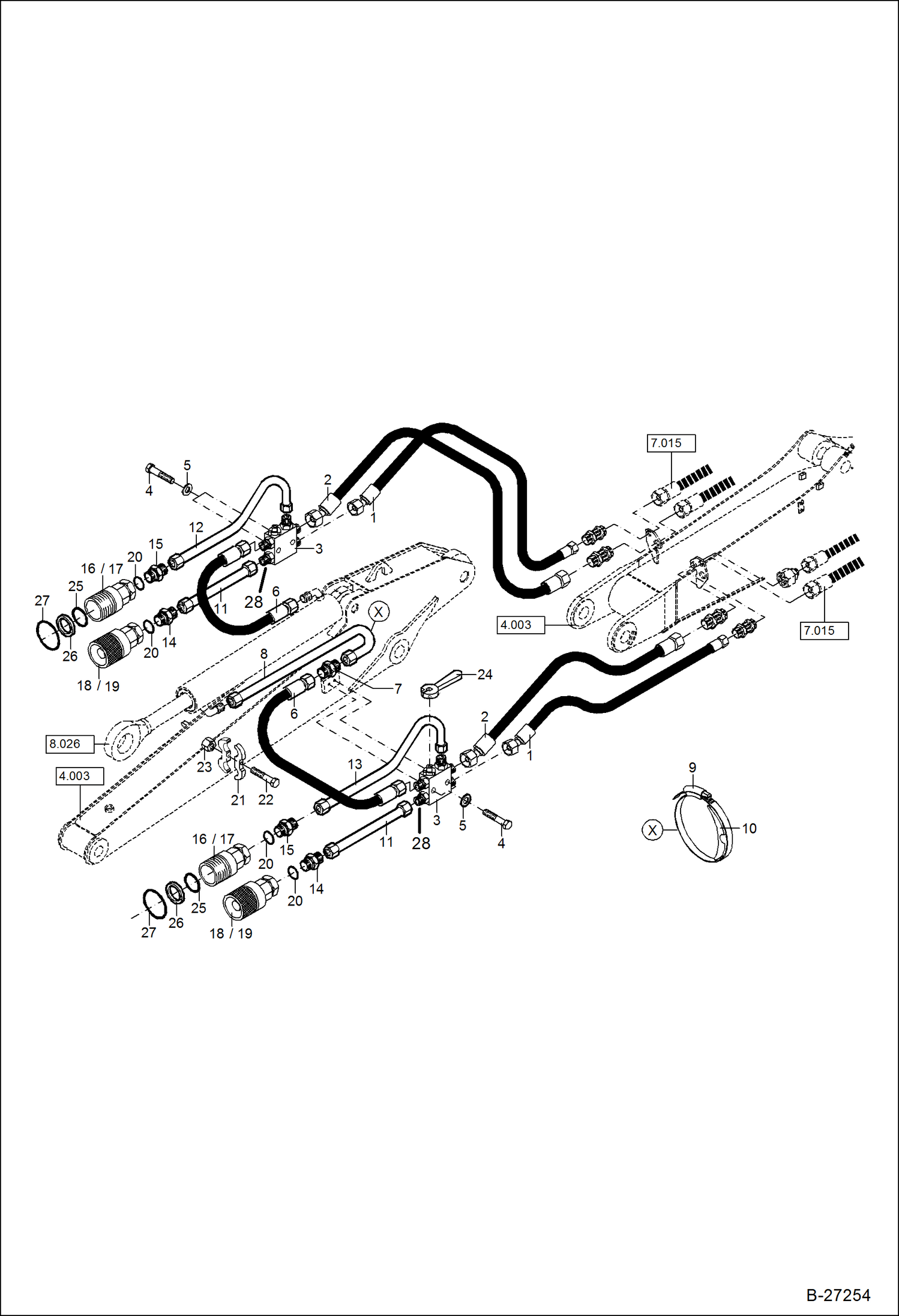

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Dipper Arm Mono HYDRAULIC SYSTEM

1

4266120404

HOSE

2

4466123501

HOSE

3

5001207159

DISTRIBUTOR BLOCK

4

1007707724

BOLT

5

1343707059

WASHER

6

4466075500

HOSE

7

1915060872

FITTING

8

0190107014

TUBING S3B2N

9

5660095400

HOSE CLIP

10

0110012050

RUBBER LAYER

11

0203220020

TUBING L2B2N

12

0190107018

TUBING S4B2N

13

0190107020

TUBING S4B2N

14

1915060566

FITTING

15

FITTING NLA - Use Kit 6501661503 - Was 1915060677 - A

16

5260301140

COUPLING SOCKET W/Refs. 25-27

17

5260301147

COVER NUT

18

5260301145

COUPLING PLUG

19

5260301149

PLUG

20

1970956719

O-RING

21

0190106020

PIPE CLIP

22

1007707025

BOLT

23

1212251013

NUT

24

5001207157

HANDLE

25

1970956629

O-RING

26

5260301146

BACK UP RING

27

1970956830

O-RING

28

5001207160

ADAPTER, ACTUATOR
