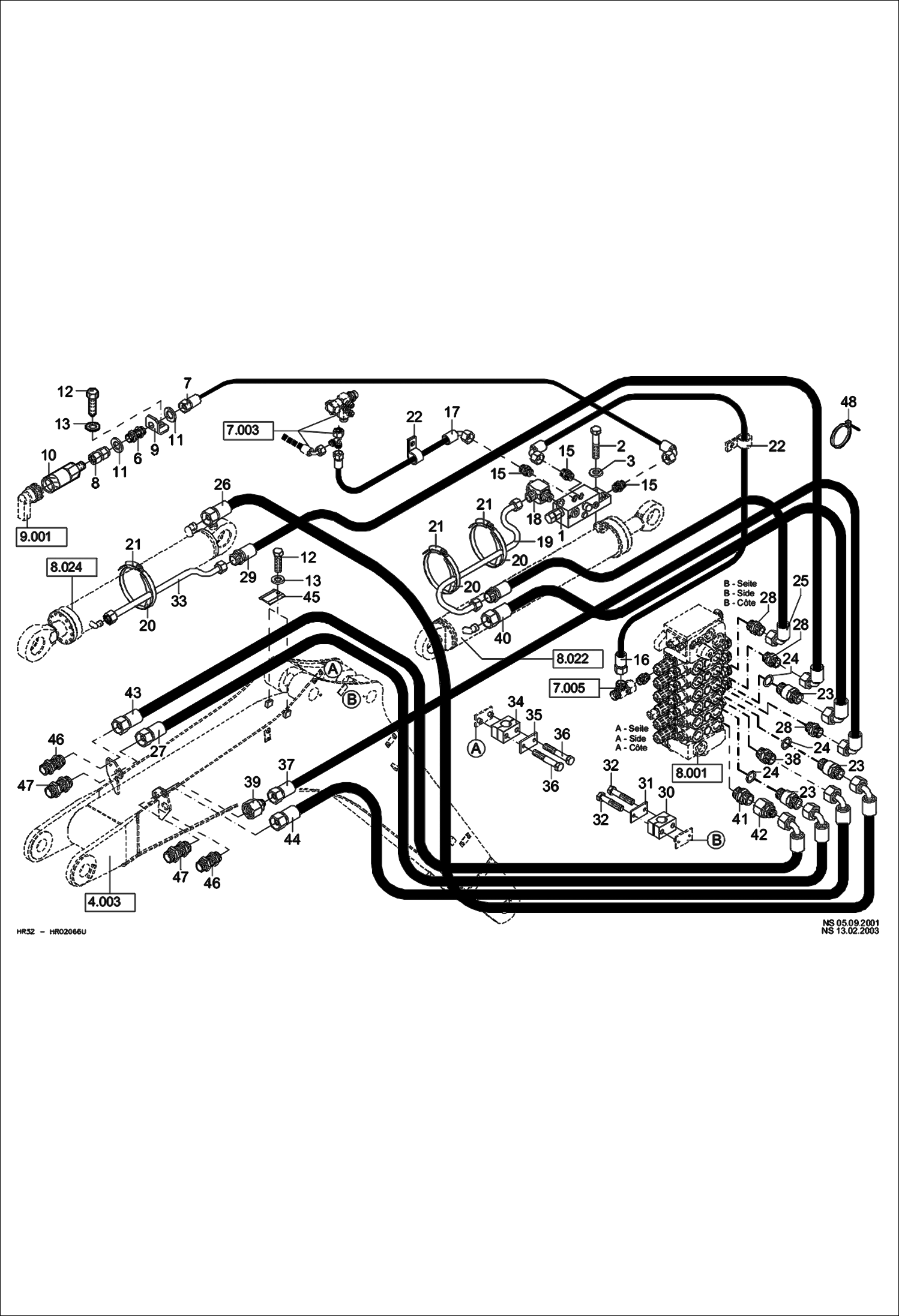

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Boom Mono HYDRAULIC SYSTEM

1

5167659758

LOAD CHECK VALVE

2

1007707019

BOLT

3

1290707018

WASHER

6

1913060151

FITTING

7

5066315843

HOSE

8

1943000101

CONNECTION

9

6203212010

ANGLE

10

5154650507

PRESSURE ABSORBER transducer - boom load warning - Was 5066315828 - A

11

1290707025

WASHER

12

1008707018

BOLT

13

1343707057

WASHER

15

1915060255

FITTING

16

4506290351

HOSE

17

4506366351

HOSE

18

1921060570

FITTING

19

0190107010

TUBING S3B2N

20

0110012050

RUBBER LAYER

21

5660095200

HOSE CLIP

22

5000210400

HOSE CLIP

23

0190008015

SCREWED SOCKET W/Ref. 24

24

1912000890

SEAL

25

4462373483

HOSE

26

4466450512

HOSE

27

4466505512

HOSE

28

1915060476

FITTING

29

4462447483

HOSE

30

5660199787

HOSE CLIP Was 5660199791 - A

31

5660200130

COVER

32

1007707014

BOLT

33

0190107012

TUBING S3B2N

34

5660199802

HOSE CLIP

35

5660200140

COVER PLATE

36

1007707214

BOLT

37

4462495441

HOSE

38

1915060470

FITTING

39

1934060219

FITTING

40

4466388512

HOSE

41

1915060266

FITTING

42

1934060170

FITTING

43

4266495376

HOSE

44

4266488376

HOSE

45

6190105031

BRACKET

46

1913060155

FITTING

47

1913060166

FITTING

48

5653093560

BINDER
