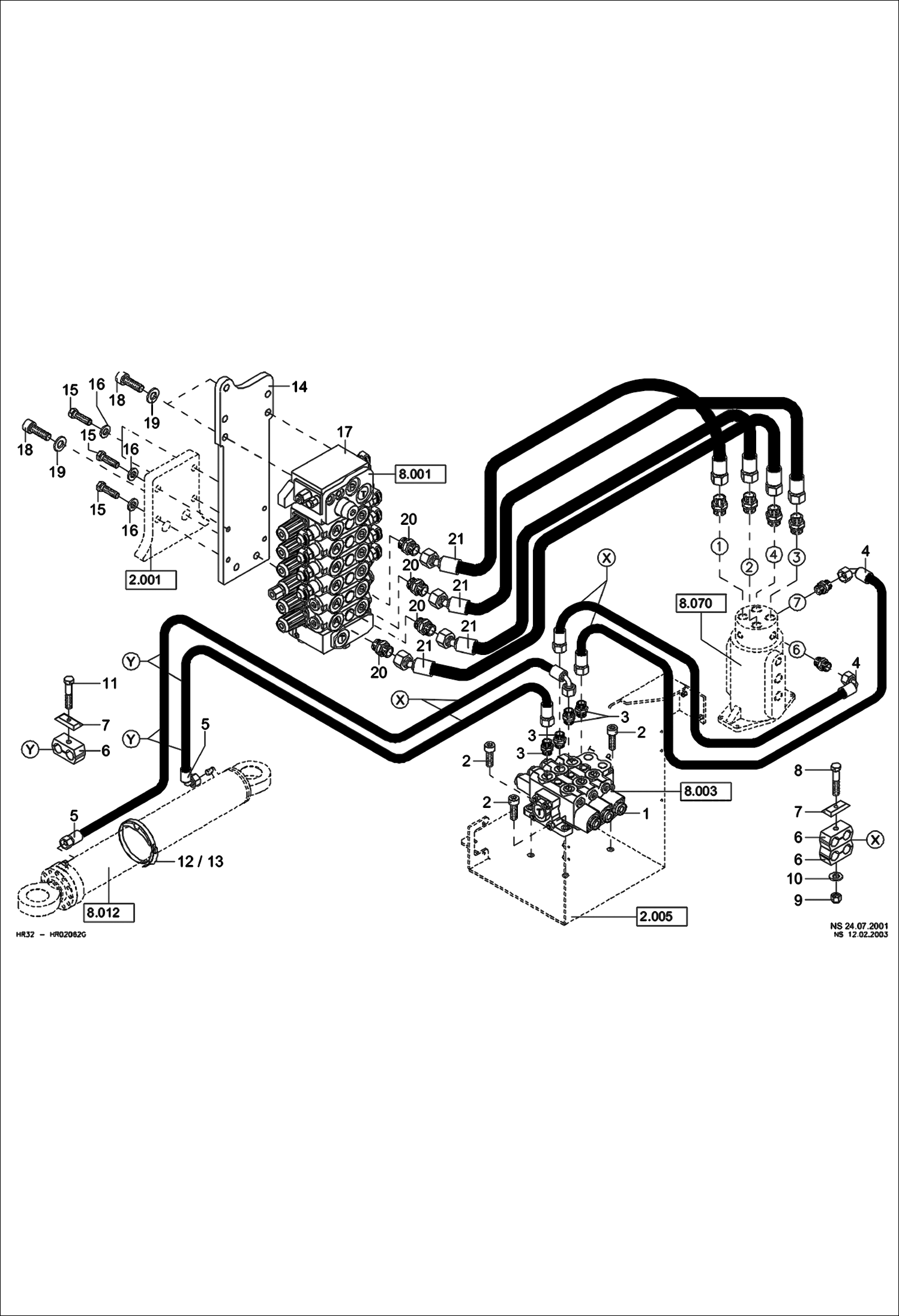

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Articulation, Drive HYDRAULIC SYSTEM

1

5606665063

VALVE, CONTROL 3 section valve bank, Includes ref. 2-6 - Was 5606660408 - A

2

1045707124

BOLT

3

1915060262

FITTING

4

4260150374

HOSE

5

4260232374

HOSE

6

5660199785

HOSE CLIP

7

5660200230

COVER PLATE

8

1007707520

BOLT

9

1212251011

NUT

10

1343707057

WASHER

11

1007707220

BOLT Was 1007707120 - A

12

5660095400

HOSE CLIP

13

0110012050

RUBBER LAYER

14

6190008010

VALVE BRACKET

15

1008707230

BOLT

16

1290707022

WASHER

17

5606660410

VALVE, CONTROL 6 section valve bank - Includes Ref. 2-9

18

1045707036

BOLT

19

1290707025

WASHER

20

1915060470

FITTING

21

4266052404

HOSE
