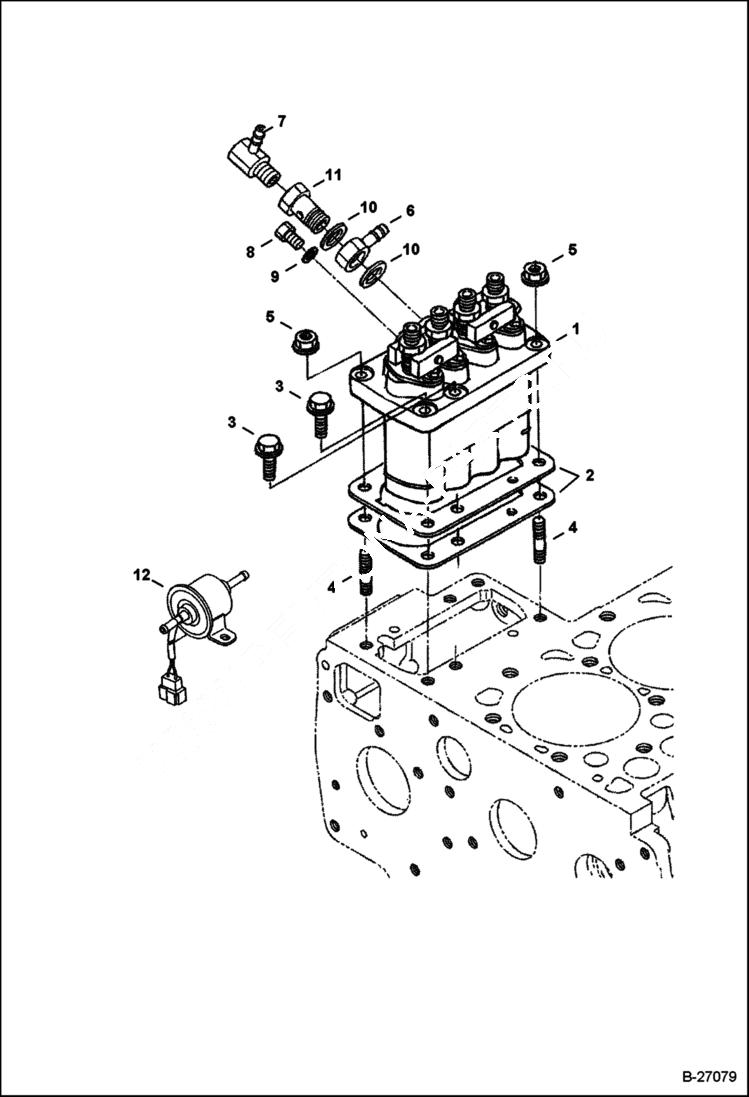

Запчасти Bobcat 435 FUEL AND INJECTION PUMP POWER UNIT

1

6698230

PUMP, INJECTION

2

6698119

SHIM 0,175 mm - injection pump

2

3974626

SHIM 0,20 mm - injection pump

2

6682515

SHIM 0,25 mm - injection pump

2

6655210

SHIM 0,30 mm - injection pump

2

6684829

SHIM 0,35 mm - injection pump

3

6680801

BOLT

4

6652670

STUD

5

6969819

NUT, FLANGE

6

6513707

JOINT eye

7

6698262

ORIFICE

8

6599084

SCREW bleeder

9

6685471

GASKET bleed

10

6698120

GASKET Use W/Ref. 11 eye bolt 6685473 - Was 3974403 - A

10

7019024

GASKET Use W/Ref. 11 eye bolt 7019023

11

6685473

BOLT, EYE 12MM Use W/Ref. 10 gasket 6698120

11

7019023

BOLT, EYE 12MM Use W/Ref. 10 gasket 7019024

12

6684852

PUMP electric fuel
